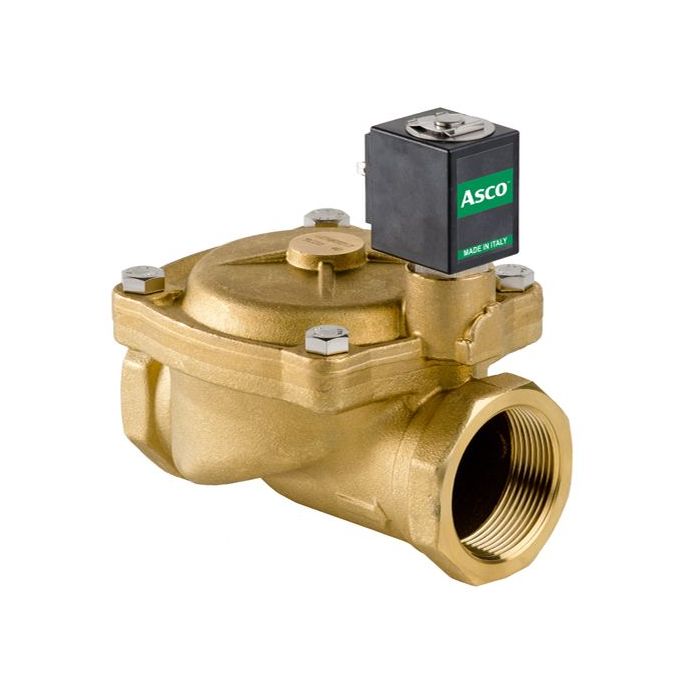

Solenoid valve ASCO L282B48-ZA10A-1 1/2" 24VDC

Lead time if the product is out of stock (business days):

30
ASCO Series L282-BIG

Sirai solenoid valves are now sold under the Asco brand.
• General purpose valves are designed to control water, air, inert gases, steam and non-aggressive fluids.
• These valves can be used for a wide range of industrial applications.
• These valves are available in 2/2 or 3/2 normally closed, open or universal service versions plus proportional control and latching versions.
• Diaphragm valve, pilot operated, having full orifice
• Soveltuu nestemäisten ja kaasumaisten nesteiden sulkemiseen (tarkista nesteen yhteensopivuus kontaktissa olevan materiaalin kanssa).
• This valve is delivered with a connector.
Technical specifications
Series L282-BIG
Product type 2-way solenoid valve
Actuation Solenoid- pilot operated
Material (body) Brass
Valve function 2-way normally open NO
Media Water, air, oil
Size 1 1/2"
Supply voltage 24V DC
Flow-through factor (Kv, m3/h) 27
Min. ambient temperature (°C) -10
Max. ambient temperature (°C) 60
Min. fluid temperature (°C) -10
Max. fluid temperature (°C) 90
Min. pressure (bar) 0.5
Max. pressure (bar) 10
IP-Class IP65
Brand ASCO
