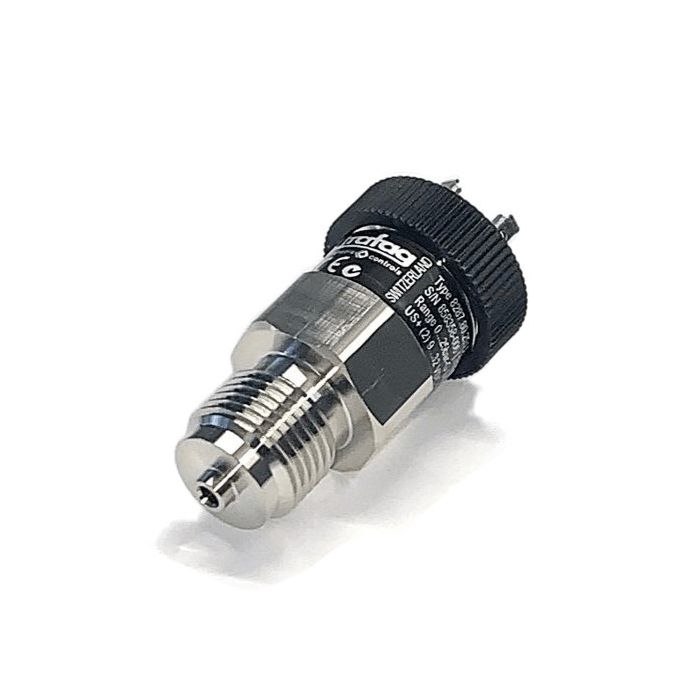

Pressure transmitter Trafag EPI16.1/2A
Lead time if the product is out of stock (business days):
35
EPI industrial pressure transmitter 4-20 mA, with pressure shock absorber, G ½" external thread
• Pressure range 0...16 bar, process connection G1/2" output 4-20 mA or 0-10V, IP 65
• Operating voltage DC 9...32
• Max. working pressure 48 bar
• Sensor material 1.4542/17.4/AISI 630
• Fully welded sensor construction, no gaskets
• Operating temperature -40...+125 °C
• Medium temperature -40...+125 °C
• EN 175301-803A
• Optional 2.5...160 bar models 5x overpressure resistance
• Pressure range 0...16 bar, process connection G1/2" output 4-20 mA or 0-10V, IP 65
• Operating voltage DC 9...32
• Max. working pressure 48 bar
• Sensor material 1.4542/17.4/AISI 630
• Fully welded sensor construction, no gaskets
• Operating temperature -40...+125 °C
• Medium temperature -40...+125 °C
• EN 175301-803A
• Optional 2.5...160 bar models 5x overpressure resistance
| Series | EPI 8287 |
|---|---|
| Product type | Display pressure transmitter |
| Min. measurement range (bar) | 0 |
| Max. measurement range (bar) | 40 |
| Min. ambient temperature (°C) | -40 |
| Max. ambient temperature (°C) | 125 |
| Process connection | G1/2" |
| Output signal | 4...20mA |
| Connector type | EN 175301-803-A (DIN 43650-A) |
| Material (sensor) | AISI630 |
| IP-Class | IP65 |
| Brand | Trafag |
