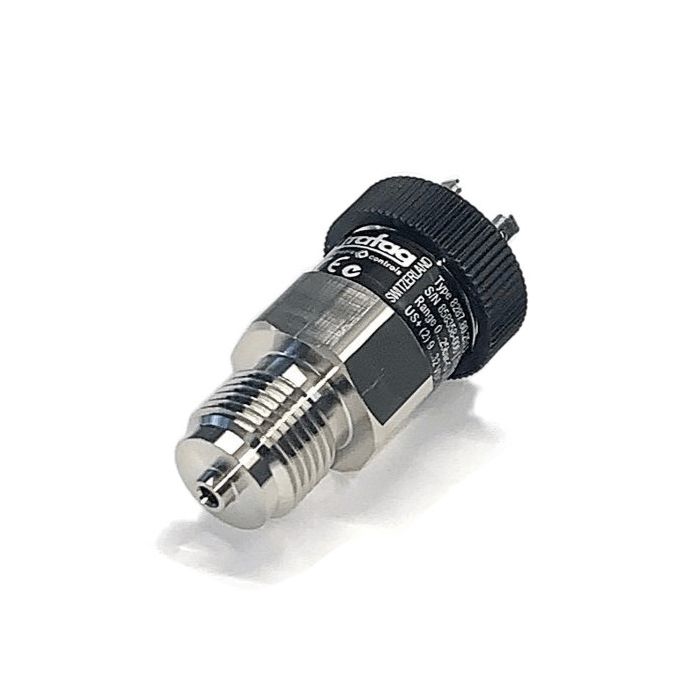

Pressure transmitter Trafag EPI40.1/2A

Lead time if the product is out of stock (business days):

EPI industrial pressure transmitter 4-20 mA, with pressure shock absorber, G ½" external thread

• Pressure range 0...40 bar, process connection G1/2" output 4-20 mA, IP65
• Operating voltage DC 9...32
• Max. working pressure 120 bar
• Sensor material 1.4542 / 17.4 / AISI 630
• Fully welded sensor construction, no gaskets
• Operating temperature -40… +125 °C
• Medium temperature -40… +125 °C
• EN 175301-803A

Optiona 2.5...160bar models 5x overpressure resistance.
Technical specifications
Series EPI 8287
Product type Pressure transmitter
Min. measurement range, bar 0.00
Max. measurement range, bar 40.00
Min. ambient temperature, °C -40.00
Max. ambient temperature, °C 120.00
Process connection G 1/4"
Sensor material AISI630
Output signal 4... 20mA
Connector type EN 175301-803-A (DIN 43650-A)
IP-Class IP65
Explosion-proof version No
Manufacturer Trafag
HVAC 4568434
Electrical number 2701016
Manufacturer code EPI40.1/2A
