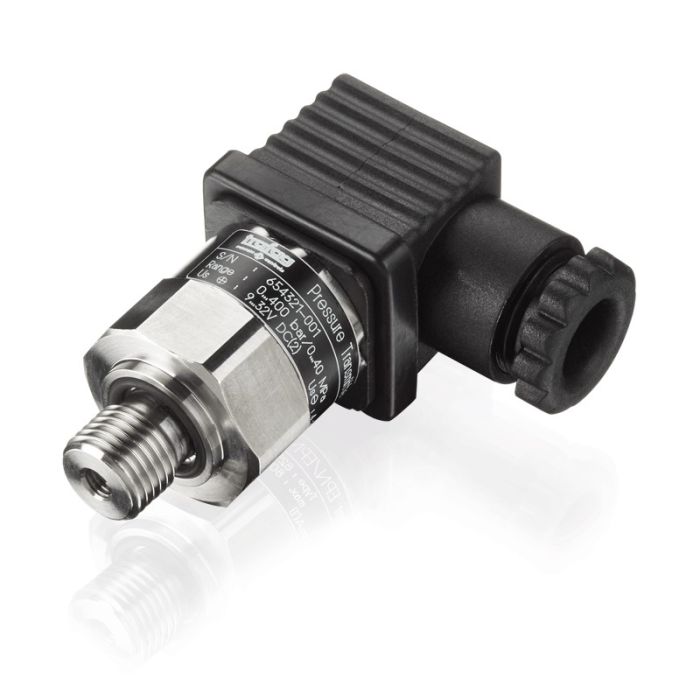

Pressure transmitter Trafag EPI600.0A

Lead time if the product is out of stock (business days):

EPI industrial pressure transmitter 4-20 mA, with pressure shock absorber, G ¼" external thread

• Pressure range 0...600 bar, process connection G1/4" output 4-20 mA or 0-10V, IP 65
• Operating voltage DC 9...32
• Sensor material 1.4542/17.4/AISI 630
• Fully welded sensor construction, no gaskets
• Operating temperature -40...+125 °C
• Medium temperature -40...+125 °C
• EN 175301-803A
• Optional 2.5...160bar models 5x overpressure resistance
Technical specifications
Series EPI 8287
Product type Pressure transmitter
Min. measurement range (bar) 0
Max. measurement range (bar) 600
Min. ambient temperature (°C) -40
Max. ambient temperature (°C) 125
Process connection G1/4"
Output signal 4...20mA
Connector type EN 175301-803-A (DIN 43650-A)
Material (sensor) AISI630
IP-Class IP65
Brand Trafag
