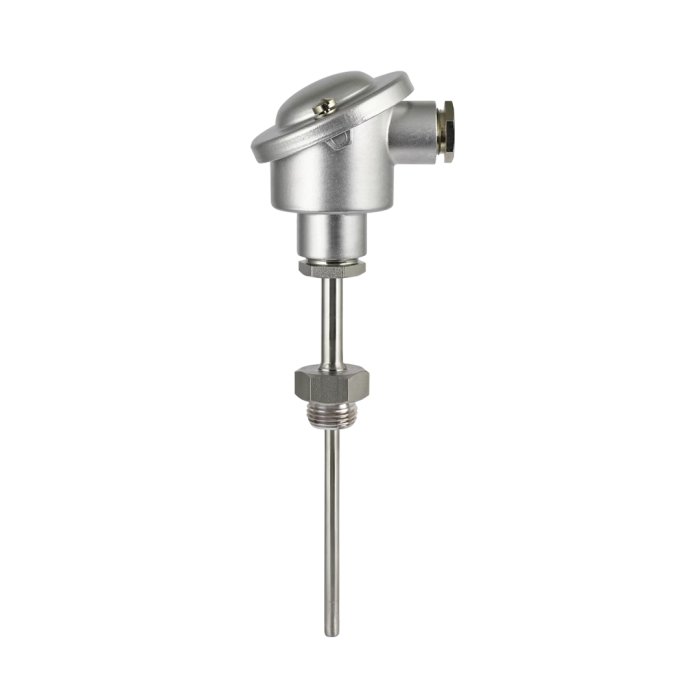

PT100 temperature sensor Labom GA2500
Lead time if the product is out of stock (business days):
40
Resistance thermometer Pt100 without thermowell
• Resistance thermometer for additional thermowell
• Pt100 connection in 3- or 4-wire technology
• Measuring insert 1 x Pt100 or 2 x Pt100
• Measuring insert interchangeable
• Various designs available
Options
• Explosion protection
• Transmitter can be integrated
• SIL 2 classification
• DNV GL approval
• Measuring insert for In-process calibration
Application areas
• Chemical and petrochemical industry
• Machinery construction
• General process technology
The resistance thermometer is suited for operation in a separate thermowell. Different designs of thermowells are available, see product group T5.
For In-process calibration the integration of a special measuriung insert with additional test pipe is possible (data sheet T4-025-45,Type GA3100, reference sensor: data sheet T4-025-46, Type GA3110).
• Resistance thermometer for additional thermowell
• Pt100 connection in 3- or 4-wire technology
• Measuring insert 1 x Pt100 or 2 x Pt100
• Measuring insert interchangeable
• Various designs available
Options
• Explosion protection
• Transmitter can be integrated
• SIL 2 classification
• DNV GL approval
• Measuring insert for In-process calibration
Application areas
• Chemical and petrochemical industry
• Machinery construction
• General process technology
The resistance thermometer is suited for operation in a separate thermowell. Different designs of thermowells are available, see product group T5.
For In-process calibration the integration of a special measuriung insert with additional test pipe is possible (data sheet T4-025-45,Type GA3100, reference sensor: data sheet T4-025-46, Type GA3110).
| Series | GA2500 |
|---|---|
| Product type | PT100 |
| Min. measurement range (°C) | -200 |
| Max. measurement range (°C) | 600 |
| Material (sensor) | AISI316L |
| Diameter (mm) | 6 |
| Certifications | ATEX, Marine, SIL |
| Explosion-proof | Yes |
| Marine | Yes |
| Marine classification | DNV-GL |
| SIL | Yes |
| SIL classification | SIL 2 |
| Brand | Labom |
