PT100 temperature sensor Labom GA2520
Lead time if the product is out of stock (business days):
40

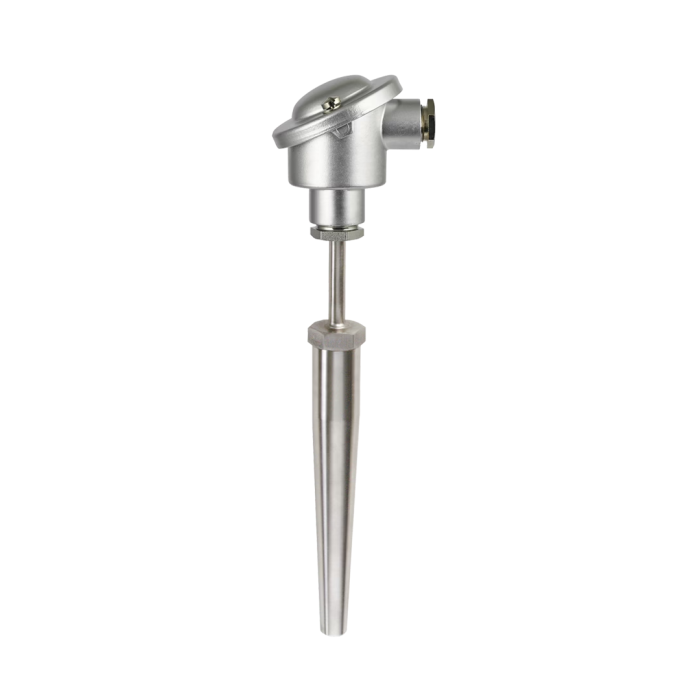

Resistance thermometer Pt100 with weld-in thermowell
Features
• Resistance thermometer with weld-in thermowell DIN 43772 model 4 or custom-made design
• Pt100 connection in 3- or 4-wire technology
• Measuring insert 1 x Pt100 or 2 x Pt100
• Measuring insert interchangeable
Options
• Explosion protection
• Classification per SIL 2
• Transmitter can be integrated
• Measuring insert for In-process calibration
Application areas
• Chemical and petrochemical industry
• Machinery construction
• General process technology
The resistance thermometer with weld-in thermowell is suited for operation on tanks and pipes. Weld-in thermowells per DIN 43772 model 4 or custom-made versions are available.
Because of its robust design it is suitable for use in a great number of technological processes. The resistance thermometer can be supplied with a built in transmitter. A
variety of transmitters for head mounting is available for different applications.
For In-process calibration the integration of a special measuring insert with additional test pipe is possible (data sheet T4-025-45,Type GA3100, reference sensor: data sheet T4-025-46, Type GA3110)
Features
• Resistance thermometer with weld-in thermowell DIN 43772 model 4 or custom-made design
• Pt100 connection in 3- or 4-wire technology
• Measuring insert 1 x Pt100 or 2 x Pt100
• Measuring insert interchangeable
Options
• Explosion protection
• Classification per SIL 2
• Transmitter can be integrated
• Measuring insert for In-process calibration
Application areas
• Chemical and petrochemical industry
• Machinery construction
• General process technology
The resistance thermometer with weld-in thermowell is suited for operation on tanks and pipes. Weld-in thermowells per DIN 43772 model 4 or custom-made versions are available.
Because of its robust design it is suitable for use in a great number of technological processes. The resistance thermometer can be supplied with a built in transmitter. A
variety of transmitters for head mounting is available for different applications.
For In-process calibration the integration of a special measuring insert with additional test pipe is possible (data sheet T4-025-45,Type GA3100, reference sensor: data sheet T4-025-46, Type GA3110)
| Series | GA2520 |
|---|---|
| Product type | PT100 |
| Min. measurement range (°C) | -200 |
| Max. measurement range (°C) | 600 |
| Material (sensor) | AISI316L |
| Explosion-proof | Yes |
| SIL classification | SIL 2 |
| Brand | Labom |
