Angle seat valve ASCO E290D16B0DSTL00

Lead time if the product is out of stock (business days):

5

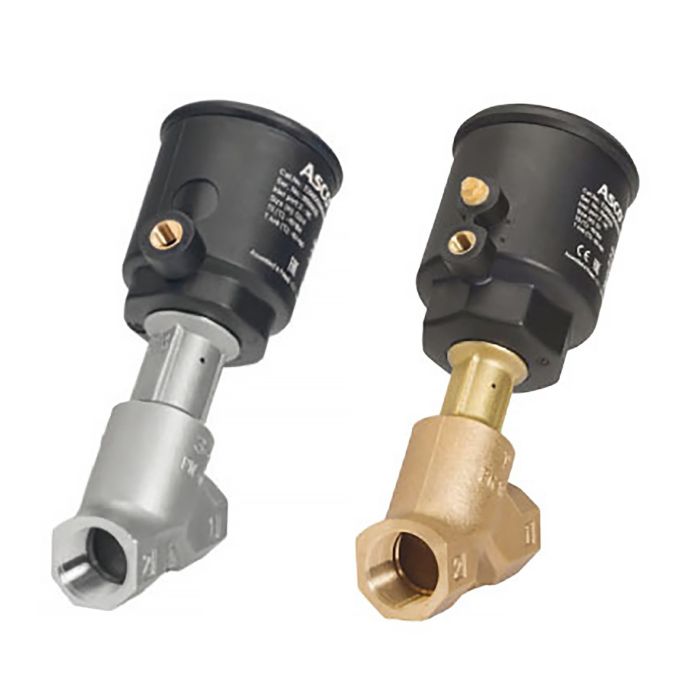

ASCO Series 290

• ASCO’s series of angle seat and globe valves are modular, robustly constructed and long-lasting.
• The frame is available in two materials, bronze or stainless steel.
• The actuator is available in either polyamide or stainless steel.
• Valve connection options include thread, weld end, Tric-Clamp and flange mounting.
• With the signaling box installed, you can you can get information about the valve's closed and open position.
• The Asco E290D valve is also available with various certifications and approvals.
Technical specifications
Series 290
Valve function NO
Actuator size Ø (mm) 90
Material (body) Bronze
Connection size 1 1/2"
Actuator Polyamide (PA)
Media Aggressive liquids/gases, air, inert gas, fuel oil, hot water, light oil, oxygen, steam, water
Sealing material Polytetrafluorethylene (PTFE)
Min. pressure (mbar) 10^-2
Brand ASCO
