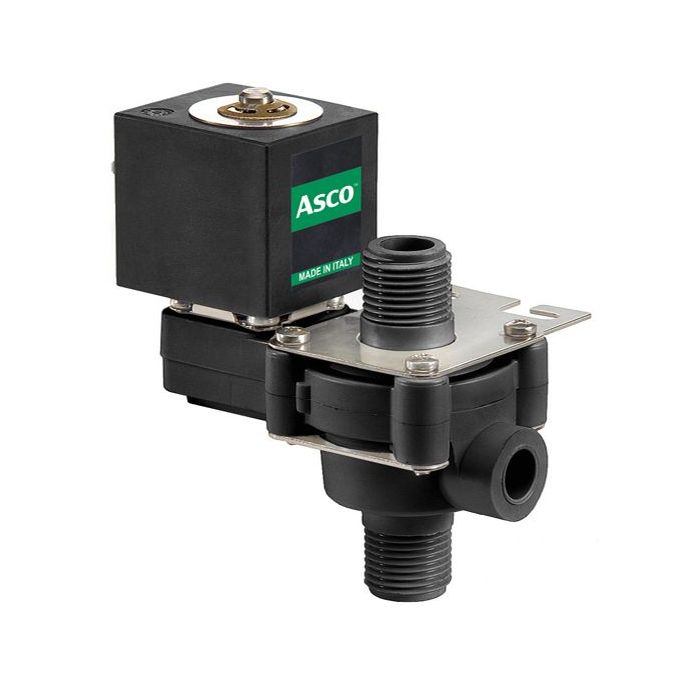

Solenoid valve ASCO D132D23-Z130A-1/2"-9 24V/50Hz

Lead time if the product is out of stock (business days):

30
General features of D series valves:
• Total isolation solenoid valves (DRY) combine the traditional characteristics of strength and reliability, with construction solutions that make them particularly suitable for the control of aggressive and/or no contaminable fluids
• These valves are available in 2/2 or 3/2 normally closed, open or universal service versions, plus miniaturized or silent versions with a latching actuator
• The diverse range of features make these valves versatile for applications in food, biotechnology, chemical/pharmaceutical, and physiological/medial industries

Features D132/D332:
• Direct acting, fully isolated
• Size: 1/2", DN15
• Fluids: water, air, oil and inert gases
• The valve's anchor mechanism is completely insulated, so the fluid is in contact only with the membrane and the body. The anchor has very low friction thanks to its PTFE coating.
• MATERIALS IN CONTACT WITH FLUID: PPS (polyphenylene sulfide) reinforced). Seals: D132 - EPDM, FPM or SBR. D332 – FPM.
• This valve is delivered with a connector

Technical data:
• Maximum pressure (PS): 2 bar
• Opening time: 30 ms
• Closing time: 30 ms
• Fluid temperature: -10… 90 °C
Technical specifications
Series D132
Product type Insulated valve (dry)
Actuation Solenoid- direct acting
Material (body) Plastic
Valve function 2-way normally closed NC
Media Water, air, oil, inert gases
Supply voltage 24V AC
Frequency 50Hz
Flow-through factor (Kv, m3/h) 1.6
Min. ambient temperature (°C) -10
Max. ambient temperature (°C) 60
Min. fluid temperature (°C) -10
Max. fluid temperature (°C) 90
Min. pressure (bar) 0
Max. pressure (bar) 1.6
IP-Class IP65
Brand ASCO
