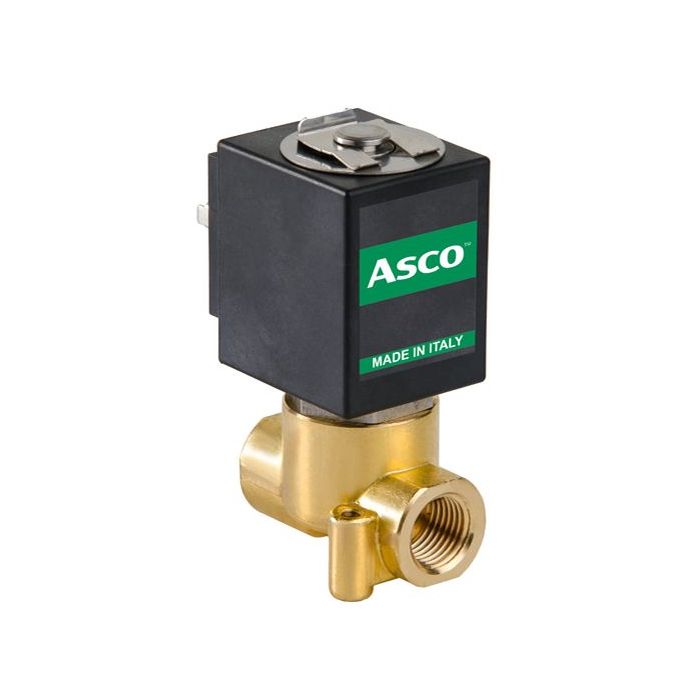

Solenoid valve ASCO L121B02-ZA10A-1/4"-2,3 230V/50Hz
Lead time if the product is out of stock (business days):
35
General features:
• Direct acting solenoid valve
• Suitable for sealing liquid and gaseous fluids (check the compatibility of the fluid with the materials in contact)
Technical features:
• Maximum allowed pressure (PS) 40 bar
• Opening time ~20 ms
• Closing time ~20 ms
• Medium temperature -10 °C +90 °C (NBR) 0 °C +130 °C (FPM) -10 °C +140 °C (EPDM)
• Maximum viscosity 5 °E (~37 cStokes or mm2/s)
• This valve is delivered with a connector
Approvals:
• UL approval (class F) - UL cl.H: ZA34 (E153691)
• IMQ CSV approval, see ZA10 data sheet for details
• MD 174/2004 and Reg. CE 1935/2004
• NSF Certified - L121V02 only
Sirai solenoid valves have been rebranded: Sirai is now Asco.
• Direct acting solenoid valve
• Suitable for sealing liquid and gaseous fluids (check the compatibility of the fluid with the materials in contact)
Technical features:
• Maximum allowed pressure (PS) 40 bar
• Opening time ~20 ms
• Closing time ~20 ms
• Medium temperature -10 °C +90 °C (NBR) 0 °C +130 °C (FPM) -10 °C +140 °C (EPDM)
• Maximum viscosity 5 °E (~37 cStokes or mm2/s)
• This valve is delivered with a connector
Approvals:
• UL approval (class F) - UL cl.H: ZA34 (E153691)
• IMQ CSV approval, see ZA10 data sheet for details
• MD 174/2004 and Reg. CE 1935/2004
• NSF Certified - L121V02 only
Sirai solenoid valves have been rebranded: Sirai is now Asco.
| Series | L121 |
|---|---|
| Product type | 2-way solenoid valve |
| Material (body) | Brass |
| Valve function | 2-way normally closed NC |
| Media | Water, air, oil, inert gases |
| Size | 1/4" |
| Supply voltage | 230V AC |
| Frequency | 50Hz |
| Flow-through factor (Kv, m3/h) | 0.15 |
| Min. ambient temperature (°C) | -10 |
| Max. ambient temperature (°C) | 60 |
| Min. fluid temperature (°C) | -10 |
| Max. fluid temperature (°C) | 90 |
| Min. pressure (bar) | 0 |
| Max. pressure (bar) | 20 |
| IP-class | IP65 |
| Brand | ASCO |
