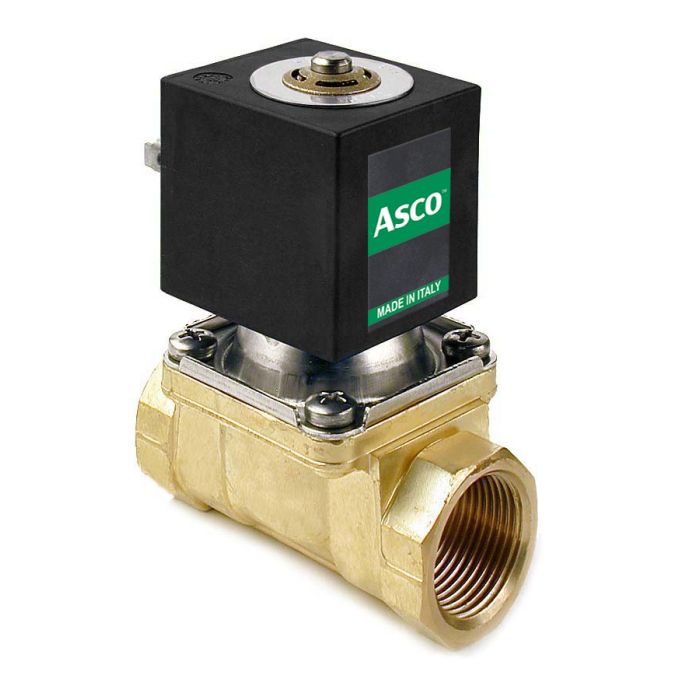

Solenoid valve ASCO L133B06-Z923A-1" 24VDC

Lead time if the product is out of stock (business days):

30
• General purpose valves are designed to control water, air, inert gases, steam and non-aggressive fluids.
• These valves can be used for wide range of industrial applications
• Available in 2/2 or 3/2 normally closed, open or universal service versions plus proportional control and latching versions
• Pilot operated hung diaphragm solenoid valve, with full orifice
• Designed for closed circuit hydraulic systems and for vessels draining
• Suitable to shut off liquid and gaseous fluids (verify the compatibility of fluid with material in contact)
• This valve is delivered with a connector
Technical specifications
Series L133
Product type 2-way solenoid valve
Material (body) Brass
Valve function 2-way normally closed NC
Media Water, air, oil
Size 1"
Supply voltage 24V DC
Flow-through factor (Kv, m3/h) 9
Min. ambient temperature (°C) -10
Max. ambient temperature (°C) 60
Min. fluid temperature (°C) -10
Max. fluid temperature (°C) 90
Min. pressure (bar) 0
Max. pressure (bar) 3
IP-Class IP65
Brand ASCO
