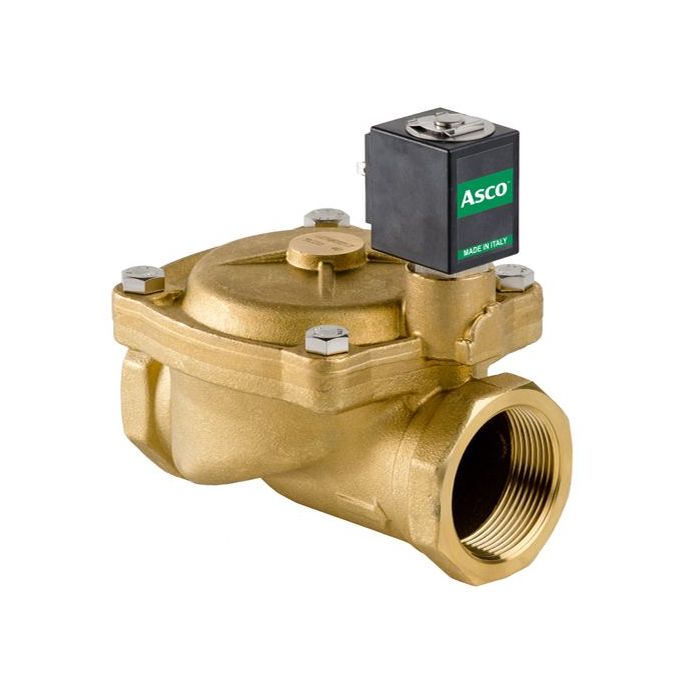

Electromagnetic solenoid valve Asco L182B48 ZA10A 1 1/4"- 24VDC
Lead time if the product is out of stock (business days):
85
ASCO Series L182-BIG
Sirai solenoid valves are now sold under the Asco brand.
• General purpose valves are designed to control water, air, inert gases, steam and non-aggressive fluids.
• These valves can be used for wide range of industrial applications.
• Available in 2/2 or 3/2 normally closed, open or universal service versions plus proportional control and latching versions.
• Diaphragm valve, pilot operated, having full orifice.
• Suitable to shut off liquid and gaseous fluids (verify the compatibility of fluid with material in contact).
• Not suitable for use with dangerous fluids listed in Group 1, therefore they are free from CE marking in conformity with article 3 § 3 of the European Directive 97/23/EC (Pressure Equipment Directive).
• This valve is delivered with a connector.
Sirai solenoid valves are now sold under the Asco brand.
• General purpose valves are designed to control water, air, inert gases, steam and non-aggressive fluids.
• These valves can be used for wide range of industrial applications.
• Available in 2/2 or 3/2 normally closed, open or universal service versions plus proportional control and latching versions.
• Diaphragm valve, pilot operated, having full orifice.
• Suitable to shut off liquid and gaseous fluids (verify the compatibility of fluid with material in contact).
• Not suitable for use with dangerous fluids listed in Group 1, therefore they are free from CE marking in conformity with article 3 § 3 of the European Directive 97/23/EC (Pressure Equipment Directive).
• This valve is delivered with a connector.
| Series | L182-big |
|---|---|
| Product type | 2-way solenoid valve |
| Min. ambient temperature (°C) | -10 |
| Max. ambient temperature (°C) | 60 |
| Min. medium temperature (°C) | -10 |
| Max. medium temperature (°C) | 90 |
| Min. pressure (bar) | 0.50 |
| Max. pressure (bar) | 10 |
| Pipe size | 1 1/4" |
| Body | L182B48 |
| Coil | ZA10A |
| Function | NC - de-energize Close |
| Flow-through factor (Kv, m3/h) | 15 |
| Supply voltage | 24 VDC |
| Material | Brass |
| Sealing material | NBR |
| IP-Class | IP65 |
| Medium | Water, Air, Oil |
| Explosion-proof version | No |
| WRAS | No |
| Manufacturer | ASCO |
| HVAC | 4125039 |
| Electrical number | 2825666 |
| Manufacturer code | L182B48-ZA10A-1 1/4" 24VDC |
