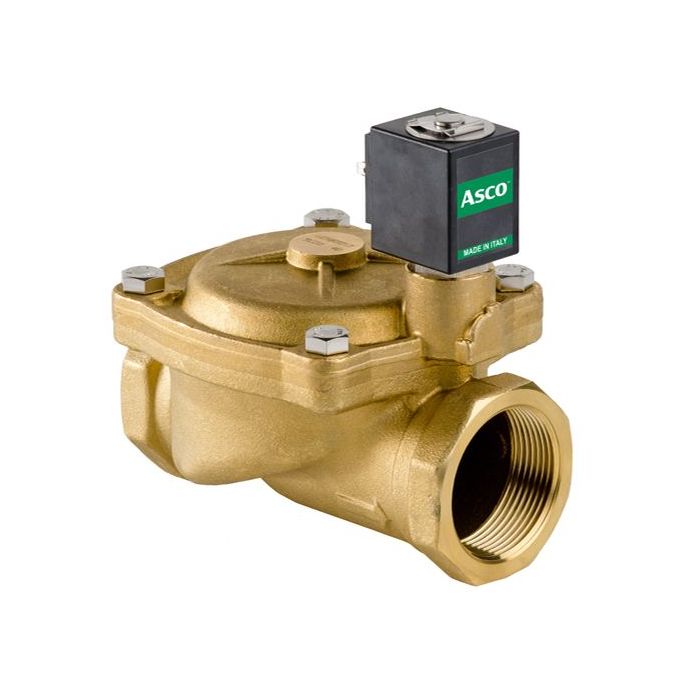

Solenoid valve ASCO L182B48-ZA10A-2" 230V/50Hz

Lead time if the product is out of stock (business days):

99
• General purpose valves are designed to control water, air, inert gases, steam and non-aggressive fluids
• These valves can be used for wide range of industrial applications
• Available in 2/2 or 3/2 normally closed, open or universal service versions plus proportional control and latching versions
• Diaphragm valve, pilot operated, having full orifice
• Suitable to shut off liquid and gaseous fluids (verify the compatibility of fluid with material in contact)
• Not suitable for use with dangerous fluids listed in Group 1, therefore they are free from CE marking in conformity with article 3 § 3 of the European Directive 97/23/EC (Pressure Equipment Directive)
• This valve is delivered with a connector

Sirai solenoid valves are now sold under the Asco brand.
Technical specifications
Series L182-BIG
Product type 2-way solenoid valve
Material (body) Brass
Valve function 2-way normally closed NC
Media Water, air, oil
Size 2"
Supply voltage 230V AC
Frequency 50Hz
Flow-through factor (Kv, m3/h) 34
Min. ambient temperature (°C) -10
Max. ambient temperature (°C) 60
Min. fluid temperature (°C) -10
Max. fluid temperature (°C) 90
Min. pressure (bar) 0.5
Max. pressure (bar) 10
IP-Class IP65
Brand ASCO
