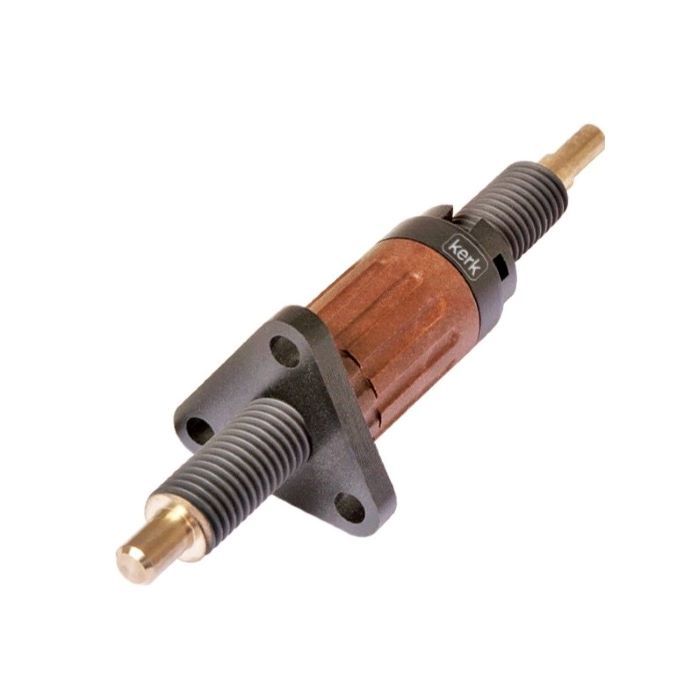

Haydon Kerk Lead Screw Nut Selection

• Kerk Lead Screw Assemblies are modified acme thread forms optimized for performance and available in a broad range of lead screw diameters, leads and nut styles, custom designed for your application.
• Kerk lead screws are self-adjusting, maintenance-free and require no lubrication.
• Providing maximum accuracy, high reliability, smooth, quiet operation and low cost, Kerk lead screw assemblies are your best choice for high performance linear motion control.
• Wide thread rise selection.

Model	CMP	ZBX	ZBA	ZBM	KHD	WDG	NTB	NTG	VHD	BFW
Max dynamic Load (N)	22.24	155	245	45020	89	333	890	22.24	1557	2224
Diameter (mm)
2	-	-	-	-	-	-	-	-	-	•
3.2	-	-	-	-	-	-	•	•	-	•
3.3	-	-	-	-	-	-	•	•	-	•
3.6	-	-	-	-	-	-	•	•	-	•
4	-	-	-	-	-	-	•	•	-	•
5	•	-	-	-	-	•	•	•	-	•
5.6	-	-	-	-	-	•	•	•	-	•
6	•	•	•	-	-	•	•	•	-	•
8	•	•	•	-	•	•	•	•	-	•
10	•	•	•	-	•	•	•	•	-	•
11	-	•	•	-	-	•	•	-	-	•
13	-	•	•	-	•	•	-	•	-	•
16	-	•	•	-	-	-	•	-	•	•
19	-	-	•	-	-	-	•	-	•	•
22	-	-	•	-	-	-	•	-	•	•
24	-	-	-	-	-	-	-	-	-	-
