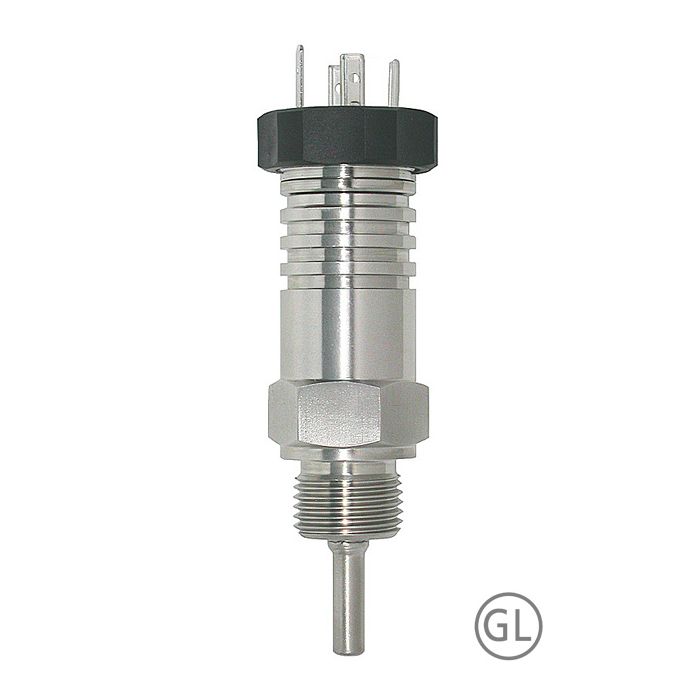

Temperature transmitter Müller MKTS-GL-100
Lead time if the product is out of stock (business days):
25
MKTS-GL Compact resistance temperature sensor with 4-20 mA output DNV-GL marine classification
Features:
• Measuring temperature range -50...+200 °C
• Operating temperature -40...+85 °C
• Integrated 4-20 mA transmitter
• Measure area scalable, minimum area 10 K
• PT100, accuracy class A as standard delivery
• 4-pin M12 connector or DIN-EN175301-803
• Material EN 1.4571, AISI 316Ti
• Durable steel housing
Features:
• Measuring temperature range -50...+200 °C
• Operating temperature -40...+85 °C
• Integrated 4-20 mA transmitter
• Measure area scalable, minimum area 10 K
• PT100, accuracy class A as standard delivery
• 4-pin M12 connector or DIN-EN175301-803
• Material EN 1.4571, AISI 316Ti
• Durable steel housing
| Series | MKTS |
|---|---|
| Product type | Temperature transmitter |
| Min. ambient temperature (°C) | -40 |
| Max. ambient temperature (°C) | 85 |
| Min. measurement range (°C) | -50 |
| Max. measurement range (°C) | 200 |
| Process connection | G1/2" |
| Output signal | 4...20mA |
| Programmable | Yes |
| Dimensions | 6 x 100mm |
| IP-class | IP67 |
| Brand | Müller |
