Pressure transmitter Trafag NAH8254 25kHz
Lead time if the product is out of stock (business days):
35

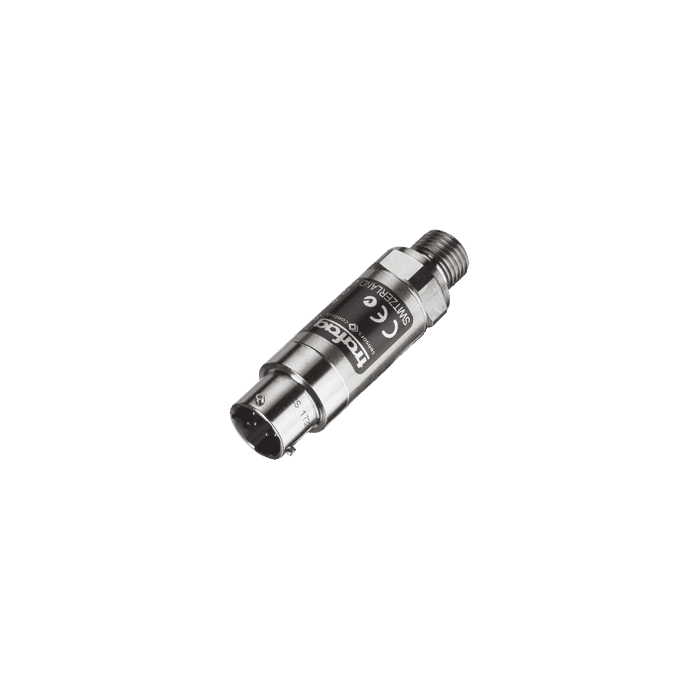

The NAH 8254 pressure transmitter, with an accuracy of 0.3% and optional switching outputs, features an exceptionally long-life thin-film steel sensor cell with triple (optionally 5-fold) overpressure protection.
The robust design and wide temperature range from -40°C to +125°C make NAH 8254 the ideal solution when pressure needs to be measured accurately and reliably in harsh environmental conditions.
Application:
• Machine tools
• Hydraulics
• Process technology
• Measuring and test bench technology
The robust design and wide temperature range from -40°C to +125°C make NAH 8254 the ideal solution when pressure needs to be measured accurately and reliably in harsh environmental conditions.
Application:
• Machine tools
• Hydraulics
• Process technology
• Measuring and test bench technology
| Series | NAH 8254 |
|---|---|
| Product type | Pressure transmitter |
| Min. measurement range (bar) | 0 |
| Max. measurement range (bar) | 40 |
| Min. ambient temperature (°C) | -40 |
| Max. ambient temperature (°C) | 125 |
| Process connection | G1/4" |
| Output signal | 4...20mA |
| Connector type | M12x1 |
| Material (sensor) | AISI630 |
| IP-class | IP67 |
| Brand | Trafag |
