Pressure transmitter Trafag NSL0.2A

Lead time if the product is out of stock (business days):

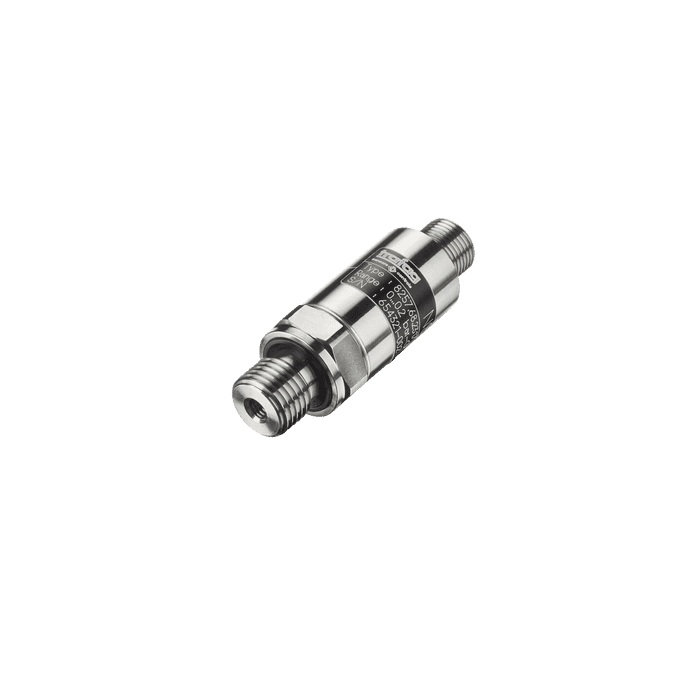

NSL 8257 Low Pressure Transmitter

The very compact Trafag NSL 8257 low-pressure transmitter is the only pressure transmitter in the market with thin-film-on-steel-membrane and pressure ranges down to 0 .. 200 mbar.

This combination allows also for low pressure ranges accurate measurements with excellent longterm stability.
Technical specifications
Series 8257
Product type Pressure transmitter
Min. measurement range (bar) 0
Max. measurement range (bar) 0.20
Min. ambient temperature (°C) -40
Max. ambient temperature (°C) 125
Process connection G 1/4"
Material (sensor) AISI630
Output signal 4... 20mA
Connector type M12x1
IP-Class IP67
Explosion-proof version No
Marine classification DNV-GL
Manufacturer Trafag
HVAC 4568495
Electrical number 2729067
Manufacturer code NSL0.2A
