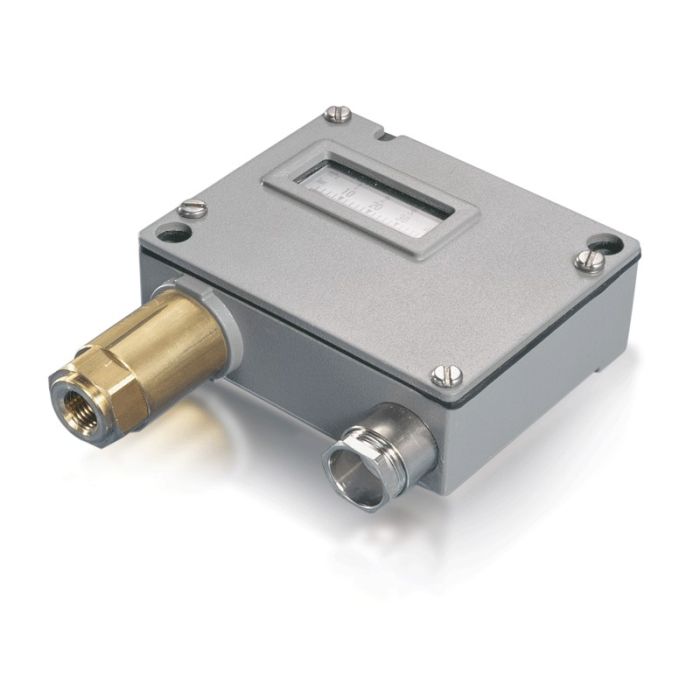

Pressure switch (pressostat) Trafag P16
Lead time if the product is out of stock (business days):
28
Pressure switch TRAFAG P16, bellows sensor, adjustment range 1...16 bar, IP65, max. pressure 24 bar, fixed difference range 0.4 bar, G 1/4" internal thread, øY 27, X 42.5.
• Sensor material: bronze/brass
• Operating temperature: -25… 70 °C
• Medium temperature: -40… 150 °C
• AC 500 V 10 (0.75) A
• DC 30 V 15 (1.5) A
• DC 250 V 0.3 (0.2) A
• Sensor material: bronze/brass
• Operating temperature: -25… 70 °C
• Medium temperature: -40… 150 °C
• AC 500 V 10 (0.75) A
• DC 30 V 15 (1.5) A
• DC 250 V 0.3 (0.2) A
| Series | P/PS 900/904/912 |
|---|---|
| Product type | Pressure switch (pressostat) |
| Material (sensor) | Pronssi/messinki |
| Min. pressure (bar) | 1 |
| Min. measurement range (bar) | 1 |
| Max. measurement range (bar) | 16 |
| Switching differential | 0.4bar |
| Process connection | G1/4" |
| Certifications | Marine |
| IP-Class | IP65 |
| Marine | Yes |
| Marine classification | ABS, BV, CCS, DNV-GL, KRS, LRS, RINA |
| Manufacturer | Trafag |
| HVAC | 4565108 |
| Electrical number | 2729704 |
| Manufacturer code | P16 |
