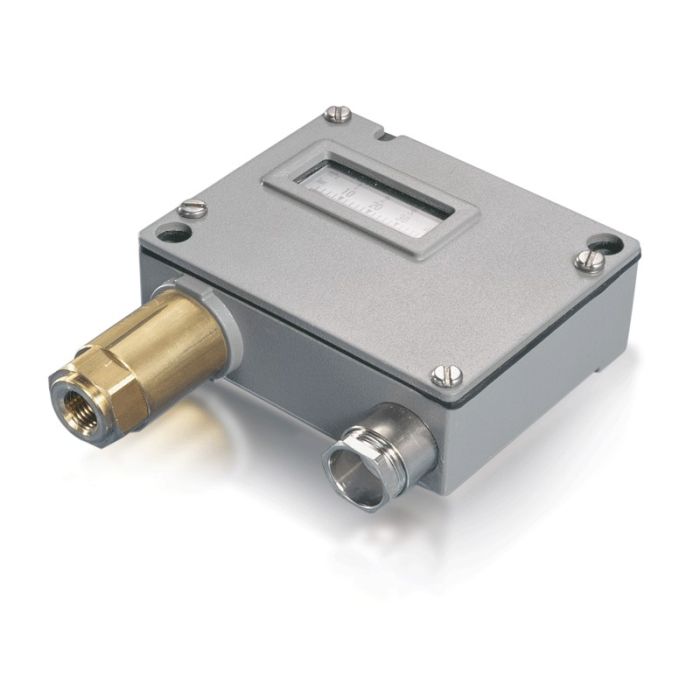

Pressure switch (pressostat) Trafag P2.5
Lead time if the product is out of stock (business days):
28
Pressure switch TRAFAG P2.5, bellows sensor, adjustment range 0.2...2.5 bar, IP65, max. pressure 10 bar, fixed differential range 0.1 bar, G 1/4" internal thread, øY 45, X 56 ,5.
• Sensor material: bronze/brass
• Operating temperature: -25… 70 °C
• Medium temperature: -40… 150 °C
• AC 500 V 10 (0.75) A
• DC 30 V 15 (1.5) A
• DC 250 V 0.3 (0.2) A
• Sensor material: bronze/brass
• Operating temperature: -25… 70 °C
• Medium temperature: -40… 150 °C
• AC 500 V 10 (0.75) A
• DC 30 V 15 (1.5) A
• DC 250 V 0.3 (0.2) A
| Series | P/PS 900/904/912 |
|---|---|
| Product type | Pressure switch (pressostat) |
| Min. pressure (bar) | 0.20 |
| Max. pressure (bar) | 10 |
| Min. ambient temperature (°C) | -40 |
| Max. ambient temperature (°C) | 150 |
| Min. measurement range (bar) | 0.20 |
| Max. measurement range (bar) | 2.50 |
| Switching differential | 0,1 bar |
| Process connection | G 1/4" |
| Material (sensor) | Pronssi/messinki |
| IP-Class | IP65 |
| Output signal | 1 vaihtokosketin (SPDT) |
| Manual reset | ei |
| Explosion-proof version | No |
| Marine classification | ABS, BV, CCS, DNV-GL, KRS, LRS, RINA |
| WRAS | No |
| Manufacturer | Trafag |
| HVAC | 4565008 |
| Electrical number | 2729701 |
| Manufacturer code | P2.5 |
