Pressure switch (pressostat) Trafag P40
Lead time if the product is out of stock (business days):
28

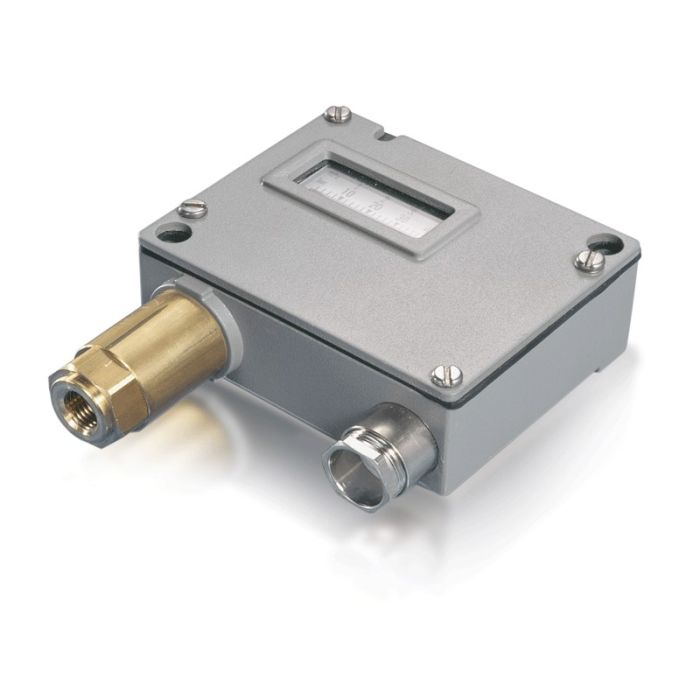

Pressure switch TRAFAG P40, bellows sensor, adjustment range 4...40 bar, IP65, max. pressure 40 bar, fixed difference range 1 bar, G 1/4" internal thread, øY 33, X 47.
• Sensor material: bronze/brass
• Operating temperature: -25… 70 °C
• Medium temperature: -40… 150 °C
• AC 500 V 10 (0.75) A
• DC 30 V 15 (1.5) A
• DC 250 V 0.3 (0.2) A
• Sensor material: bronze/brass
• Operating temperature: -25… 70 °C
• Medium temperature: -40… 150 °C
• AC 500 V 10 (0.75) A
• DC 30 V 15 (1.5) A
• DC 250 V 0.3 (0.2) A
| Series | P/PS 900/904/912 |
|---|---|
| Product type | Pressure switch (pressostat) |
| Min. pressure, bar | 4.00 |
| Max. pressure, bar | 40.00 |
| Min. ambient temperature, °C | -40.00 |
| Max. ambient temperature, °C | 150.00 |
| Min. measurement range, bar | 4.00 |
| Max. measurement range, bar | 40.00 |
| Switching differential | 1 bar |
| Process connection | G 1/4" |
| Sensor material | Pronssi/messinki |
| IP-Class | IP65 |
| Output signal | 1 vaihtokosketin (SPDT) |
| Manual reset | ei |
| Explosion-proof version | No |
| Marine classification | ABS, BV, CCS, DNV-GL, KRS, LRS, RINA |
| WRAS | No |
| Manufacturer | Trafag |
| HVAC | 4565110 |
| Electrical number | 2729705 |
| Manufacturer code | P40 |
