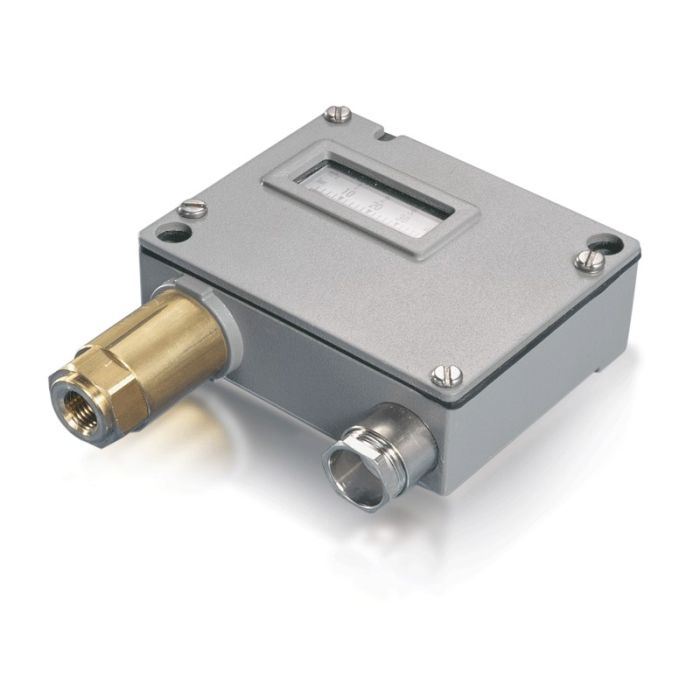

Pressure switch (pressostat) Trafag P40RI
Lead time if the product is out of stock (business days):
28
Limiting pressure switch with manual reset button TRAFAG P40RI, G 1/4" internal thread, 4...40 bar, bellows sensor, IP 65, max. pressure 40 bar continuous, limitation when the pressure rises.
• Sensor material: bronze/brass
• Operating temperature: -30… 70 °C
• Medium temperature: -40… 150 °C
• AC 500V 10 (0.75) A
• DC 30 V 15 (1.5) A
• DC 250 V 0.3 (0.2) A
• Sensor material: bronze/brass
• Operating temperature: -30… 70 °C
• Medium temperature: -40… 150 °C
• AC 500V 10 (0.75) A
• DC 30 V 15 (1.5) A
• DC 250 V 0.3 (0.2) A
| Series | P/PS 900/904/912 |
|---|---|
| Product type | Pressure switch (pressostat) |
| Max. pressure, bar | 40.00 |
| Min. ambient temperature, °C | -40.00 |
| Max. ambient temperature, °C | 150.00 |
| Min. measurement range, bar | 4.00 |
| Max. measurement range, bar | 40.00 |
| Switching differential | 3 bar |
| Process connection | G 1/4" |
| Sensor material | Pronssi/messinki |
| IP-Class | IP65 |
| Output signal | 1 vaihtokosketin (SPDT) |
| Manual reset | kyllä |
| Marine classification | ABS, BV, CCS, DNV-GL, KRS, LRS, RINA |
| WRAS | No |
| SIL | No |
| Manufacturer | Trafag |
| Electrical number | 2729037 |
| Manufacturer code | P40RI |
