P595IX-001/0
Lead time if the product is out of stock (business days):
20

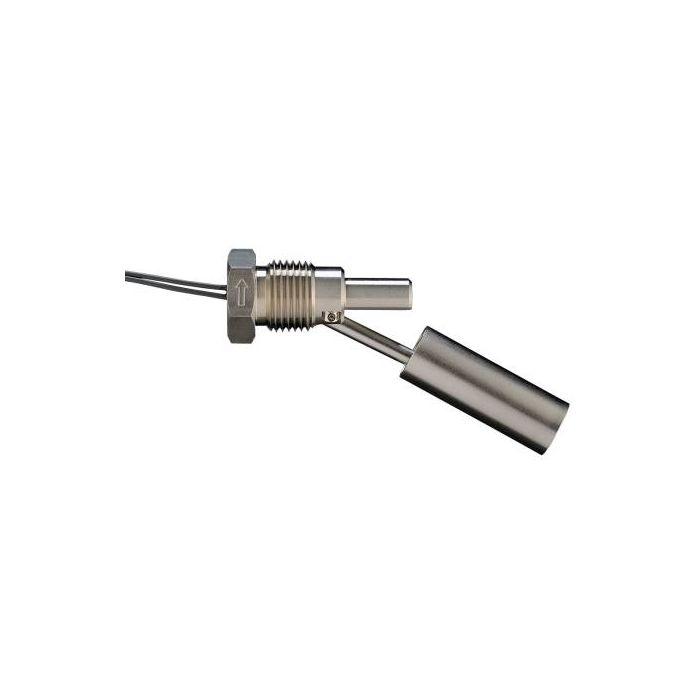

P595 Horizontal float switch ½” NPT for liquids
• Horizontally mounted float switch NC or NO by turning the sensor 180°
• Sensor material AISI304
• Suitable for liquids with a specific gravity of min. 0.8g/cm³ for water, oil, fuel
• Max. operating temperature -40..+120 °C
• Max. 250 V, 50 W, 1A cable length 0.5 m
• Reed- magnetic switch SPST
• Thread ½” NPT
Typical applications:
• water tanks
• Fuel tanks
• Oil level level switch
• Horizontally mounted float switch NC or NO by turning the sensor 180°
• Sensor material AISI304
• Suitable for liquids with a specific gravity of min. 0.8g/cm³ for water, oil, fuel
• Max. operating temperature -40..+120 °C
• Max. 250 V, 50 W, 1A cable length 0.5 m
• Reed- magnetic switch SPST
• Thread ½” NPT
Typical applications:
• water tanks
• Fuel tanks
• Oil level level switch
| Series | P595 |
|---|---|
| Product type | Float switch |
| Min. ambient temperature (°C) | -40 |
| Max. ambient temperature (°C) | 120 |
| Electrical data switch | SPST |
| Material (sensor) | AISI304 |
