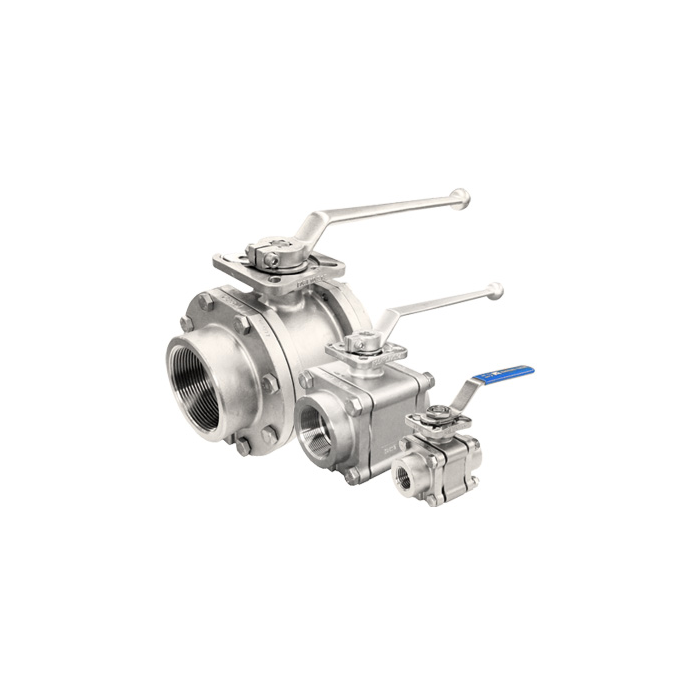

Ball valve 3PC | Acid-resistant stainless steel | Female thread | Series 2013KMD
Lead time if the product is out of stock (business days):
5
3 piece stainless steel ball valve with full bore for Chemical industries, petrochemical industries, hydraulic installation, heating, water distribution and compressed air.
Features:
• Thread end ISO 228-1
• Sizes DN15 - DN100
• Temperature range -20 °C...+200 °C
• Pressure rating PN137, PN100, PN63 (based on size)
• ISO 5211 actuator mounting flange
• API 607 firesafe
Features:
• Thread end ISO 228-1
• Sizes DN15 - DN100
• Temperature range -20 °C...+200 °C
• Pressure rating PN137, PN100, PN63 (based on size)
• ISO 5211 actuator mounting flange
• API 607 firesafe
| Series | 2013KMD |
|---|---|
| Product type | Ball valve 3PC |
| Pressure class | PN63 |
| Pipe connection | Female thread |
| Material (body) | Acid-resistant stainless steel |
| Sealing material | Teflon (PTFE) |
| ISO5211 actuator mounting | Yes |
| Max. ambient temperature (°C) | 200 |
| Min. ambient temperature (°C) | -20 |
| Firesafe | Yes |
| Brand | Haitima |
