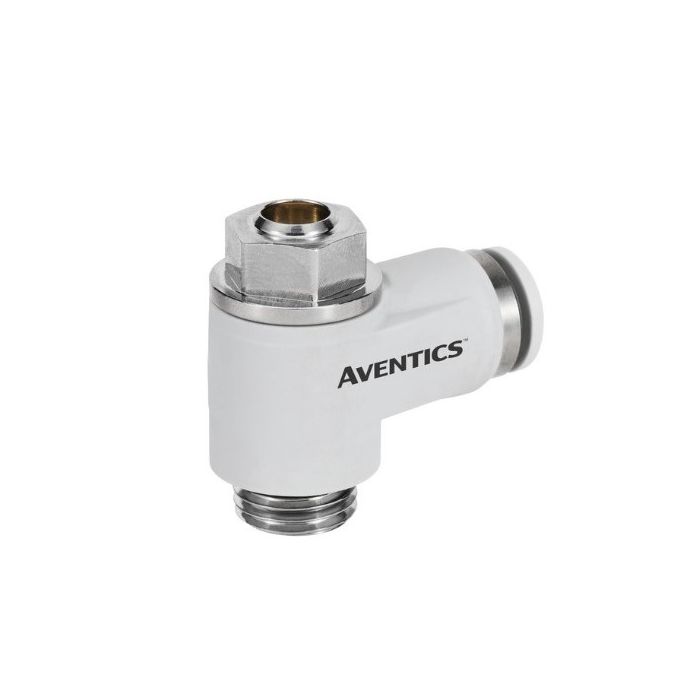

Flow valve AVENTICS R412010564
Lead time if the product is out of stock (business days):
35
AVENTICS Series CC
• Check-choke valves are designed for nominal flows from 70 to 1950 l/min
• Different versions are available with a push-in fitting or internal thread
• Check-choke valves are designed for nominal flows from 70 to 1950 l/min
• Different versions are available with a push-in fitting or internal thread
| Series | CC04 |
|---|---|
| Product type | Flow valve |
| Port 1 | ø4 |
| Port 2 | M5 |
| Throttle bore Ø (mm) | 2 |
| Rated current Qn (l/min) | 70 |
| Gas direction | 2 ▶ 1 |
| Compressed air connection type 1 | Push-in fitting |
| Compressed air connection type 2 | External thread |
| Min. ambient temperature (°C) | -10 |
| Max. ambient temperature (°C) | 60 |
| Min. pressure (bar) | 0.5 |
| Max. pressure (bar) | 10 |
| Throttle | Exhaust Air Throttling |
| Material (housing) | Polyamide |
| Brand | AVENTICS |
