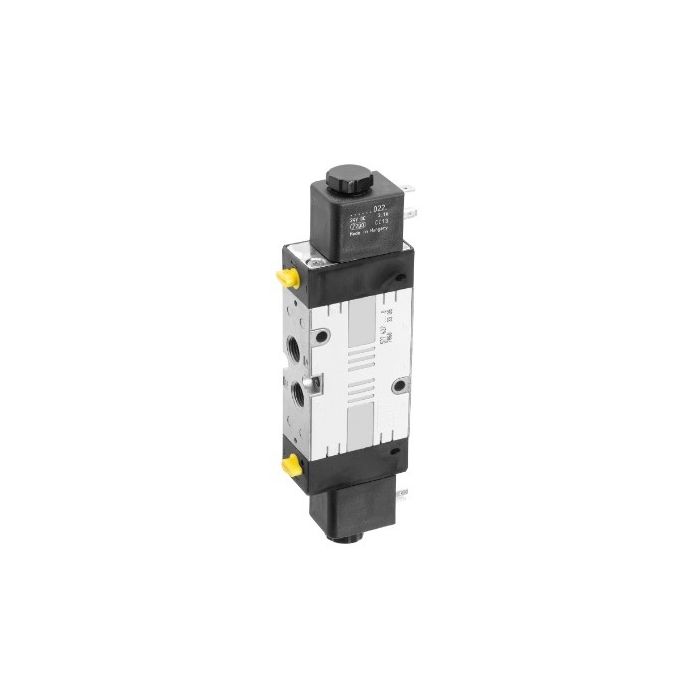

Pneumatic valve AVENTICS 5776845302
Lead time if the product is out of stock (business days):
35
AVENTICS Series CD
• Consists of various spool valves with an extremely durable die-cast zinc housing
• Electrical, pneumatic, or mechanical actuating controls (roller, lever, pedal, or plunger) make the Series CD ideal for applications in harsh environments
• Consists of various spool valves with an extremely durable die-cast zinc housing
• Electrical, pneumatic, or mechanical actuating controls (roller, lever, pedal, or plunger) make the Series CD ideal for applications in harsh environments
| Series | CD07 |
|---|---|
| Activation | Electrical |
| Valve type | 5/2 |
| Rated current Qn (l/min) | 1200 |
| Min. working pressure (bar) | 3 |
| Max. working pressure (bar) | 10 |
| Min. ambient temperature (°C) | -40 |
| Max. ambient temperature (°C) | 50 |
| Min. control pressure (bar) | 3 |
| Max. control pressure (bar) | 10 |
| Actuation | Internal |
| Compressed air connection output | G1/4 |
| Manual override | With detent |
| Electrical connection 2 | Plug |
| Electrical connection size | EN 175301-803, Muoto A |
| Using the control | Double solenoid |
| Sealing Principle | Soft seal |
| Connection type | Pipe |
| Return | With spring return |
| Number of poles | 3-pin |
| Heat resistance | -40°C |
| Width Control valve (mm) | 30 |
| 1 to 2 Nominal flow Qn (l/min) | 1200 |
| 2 to 3 Nominal flow Qn (l/min) | 1200 |
| Basic valve with electrical connector | Basic valve without coil |
| Explosion-proof | Optional |
| Brand | AVENTICS |
