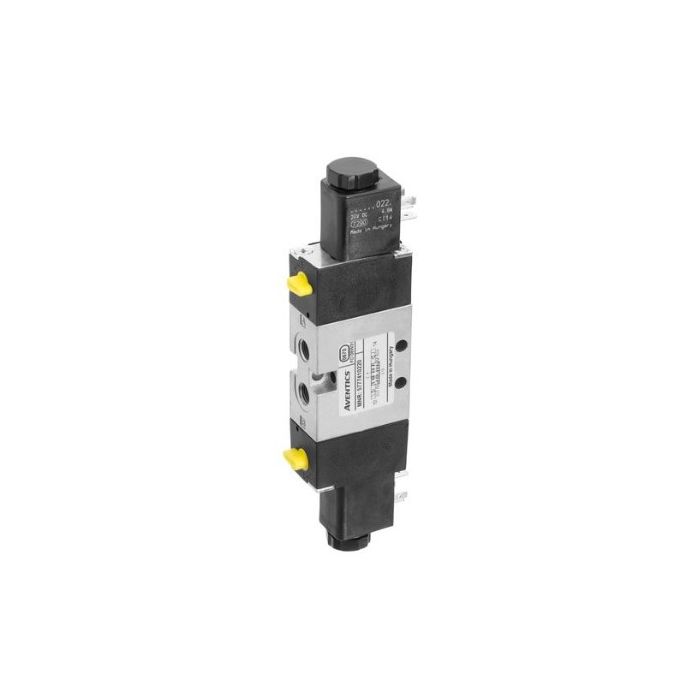

Pneumatic valve AVENTICS 5777425302
Lead time if the product is out of stock (business days):
35
AVENTICS Series CD
• Consists of various spool valves with an extremely durable die-cast zinc housing
• Electrical, pneumatic, or mechanical actuating controls (roller, lever, pedal, or plunger) make the Series CD ideal for applications in harsh environments
• Consists of various spool valves with an extremely durable die-cast zinc housing
• Electrical, pneumatic, or mechanical actuating controls (roller, lever, pedal, or plunger) make the Series CD ideal for applications in harsh environments
| Series | CD04 |
|---|---|
| Activation | Electrical |
| Valve type | 5/3 |
| Rated current Qn (l/min) | 900 |
| Min. working pressure (bar) | 3.5 |
| Max. working pressure (bar) | 10 |
| Min. ambient temperature (°C) | -15 |
| Max. ambient temperature (°C) | 50 |
| Min. control pressure (bar) | 3.5 |
| Max. control pressure (bar) | 10 |
| Actuation | Internal |
| Compressed air connection output | G1/8 |
| Version | Closed centre |
| Manual override | With detent |
| Electrical connection 2 | Plug |
| Electrical connection size | EN 175301-803, Muoto B |
| Using the control | Double solenoid |
| Sealing Principle | Soft seal |
| Connection type | Pipe |
| Return | With spring return |
| Number of poles | 3-pin |
| Width Control valve (mm) | 26 |
| 1 to 2 Nominal flow Qn (l/min) | 900 |
| 2 to 3 Nominal flow Qn (l/min) | 900 |
| IP-class | IP65 |
| Brand | AVENTICS |
