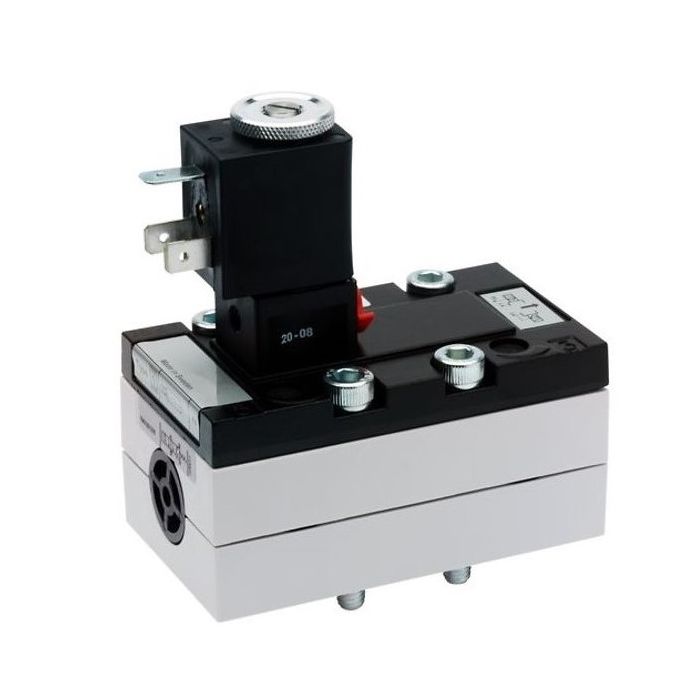

Pneumatic valve AVENTICS 5812111400
Lead time if the product is out of stock (business days):
35
AVENTICS Series HV30
• Complies with the valve standard ISO 5599-1
• Due to the level of flow and robustness, especially at high ambient temperatures, HV30 is the perfect valve for aluminium applications
• Complies with the valve standard ISO 5599-1
• Due to the level of flow and robustness, especially at high ambient temperatures, HV30 is the perfect valve for aluminium applications
| Series | 581/HV30 |
|---|---|
| Activation | Electrical |
| Valve type | 5/2 |
| Supply voltage | 230V/50Hz |
| Rated current Qn (l/min) | 2700 |
| Min. working pressure (bar) | 3 |
| Max. working pressure (bar) | 10 |
| Min. ambient temperature (°C) | -15 |
| Max. ambient temperature (°C) | 50 |
| Min. control pressure (bar) | 3 |
| Max. control pressure (bar) | 10 |
| Actuation | Internal |
| Compressed air connection output | Base plate ISO 5599-1 |
| Manual override | With detent |
| Electrical connection 2 | Plug |
| Electrical connection size | EN 175301-803, Muoto B |
| Using the control | One solenoid |
| Sealing Principle | Soft seal |
| Connection type | Pipe |
| Return | With spring return |
| Voltage tolerance (DC) | -10% / +10% |
| Flow conductance, l/(s*bar) C | 10.8 |
| Width Control valve (mm) | 22 |
| IP-class | IP65 |
| Brand | AVENTICS |
