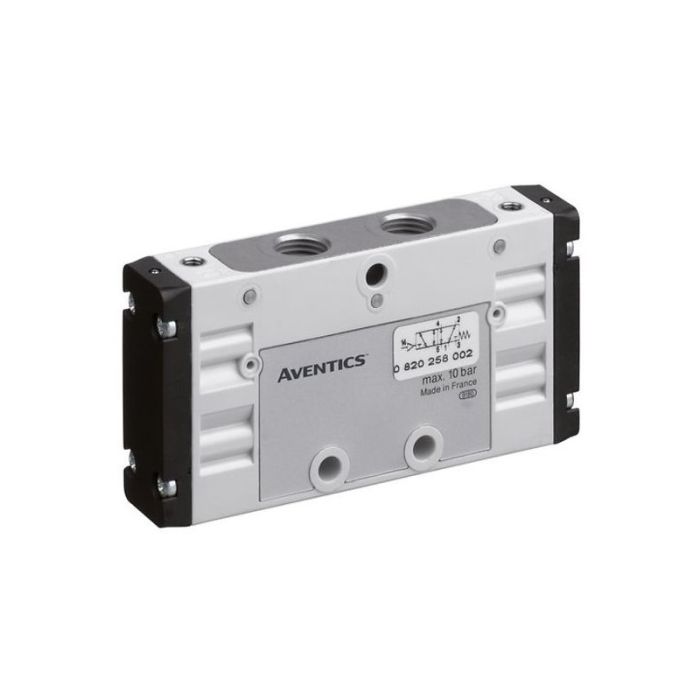

Pneumatic valve AVENTICS 0820258003
Lead time if the product is out of stock (business days):
35
AVENTICS Series TC15
• TC15 valve system is the perfect choice for applications calling for lightweight valves with high flow rate in a small space
• With valves operated either pneumatically or electrically, the valve system can be modularly expanded to up to 12 valves
• Valves can be exchanged without dismantling the valve block
• TC15 valve system is the perfect choice for applications calling for lightweight valves with high flow rate in a small space
• With valves operated either pneumatically or electrically, the valve system can be modularly expanded to up to 12 valves
• Valves can be exchanged without dismantling the valve block
| Series | TC15 |
|---|---|
| Activation | Pneumatical |
| Valve type | 5/2 |
| Rated current Qn (l/min) | 1500 |
| Min. working pressure (bar) | -0.9 |
| Max. working pressure (bar) | 10 |
| Min. ambient temperature (°C) | -10 |
| Max. ambient temperature (°C) | 50 |
| Min. control pressure (bar) | 2 |
| Max. control pressure (bar) | 10 |
| Actuation | External |
| Compressed air connection output | G1/4 |
| Using the control | Double solenoid |
| Sealing Principle | Soft seal |
| Connection type | Pipe |
| Mid-range | Compressed air |
| Compressed air connection exhaust | G1/4 |
| Compressed air connection pilot exhaust | M5 |
| Flow conductance b | 0.33 |
| Flow conductance c | 6.8 l/(s*bar) |
| Max. particle size (µm) | 5 |
| Brand | AVENTICS |
