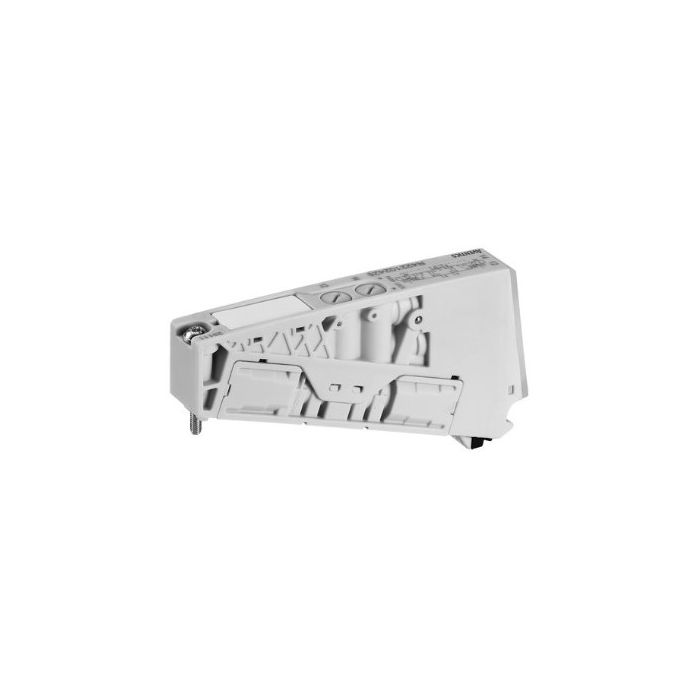

Pneumatic valve AVENTICS R422102429
Lead time if the product is out of stock (business days):
35
AVENTICS Series AV03
• Provide a reliable basis for both compact handling systems and complex automation solutions
• Within machine safety the Series AV03 offers intelligent solutions that significantly reduce your effort in creating a safe design
• With the integration of the fieldbus and I/O-modules of the Series AES, also all requirements for distributed control are available
• Series AV03 is easy to configure, easy to use and easy to extend as well as IIoT futureproof thanks to the integration of OPC UA and the Digital Twin
• Provide a reliable basis for both compact handling systems and complex automation solutions
• Within machine safety the Series AV03 offers intelligent solutions that significantly reduce your effort in creating a safe design
• With the integration of the fieldbus and I/O-modules of the Series AES, also all requirements for distributed control are available
• Series AV03 is easy to configure, easy to use and easy to extend as well as IIoT futureproof thanks to the integration of OPC UA and the Digital Twin
| Series | AV03 |
|---|---|
| Activation | Electrical |
| Valve type | 5/3 |
| Supply voltage | 24V DC |
| Rated current Qn (l/min) | 240 |
| Min. working pressure (bar) | -0.9 |
| Max. working pressure (bar) | 10 |
| Min. ambient temperature (°C) | -10 |
| Max. ambient temperature (°C) | 60 |
| Min. control pressure (bar) | 3 |
| Max. control pressure (bar) | 8 |
| Actuation | External |
| Version | Closed centre |
| Manual override | Without withholding |
| Using the control | Double solenoid |
| Sealing Principle | Soft seal |
| Connection type | Plate |
| Return | With spring return |
| Mid-range | Compressed air |
| Voltage tolerance (DC) | -10% / +10% |
| Flow conductance, l/(s*bar) C | 0.92 |
| Blocking principle | Multiple base plate principle |
| Max. particle size (µm) | 40 |
| IP-class | IP65 |
| Brand | AVENTICS |
