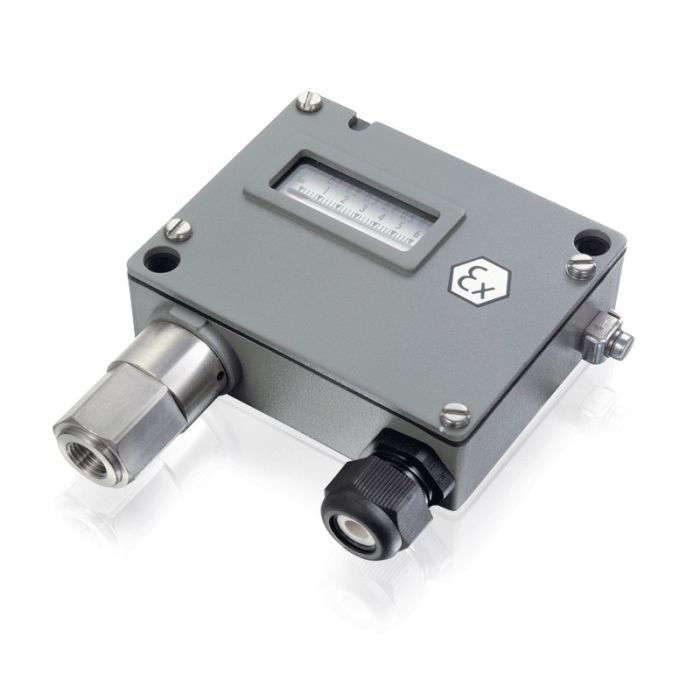

Pressure switch (pressostat) Trafag ExPK250
Lead time if the product is out of stock (business days):
45
EXPK 944/947/953 enclosed piston-operated EX industrial pressure switch Trafag
Features:
• Pressure range 1...10/60...600 bar
• Changeover contact 250 VAC, 10 (1.25) A
• Sensor material 1.4435/nickel-plated brass
• Housing AlSi10Mg/epoxy coated
• Classifications ECEx, ATEX, UKEX
• Gases II 2G Ex db eb IIC T6 Gb, Dusts II 2D Ex tb IIIC T80°C Db
• Process connection G1/4" or 1/2" internal thread
• Medium temperature -40...+150 °C
• Max. pressure resistance 40 bar
• Protection class IP65
Typical applications:
• Hydraulics
• II 2G/D
Features:
• Pressure range 1...10/60...600 bar
• Changeover contact 250 VAC, 10 (1.25) A
• Sensor material 1.4435/nickel-plated brass
• Housing AlSi10Mg/epoxy coated
• Classifications ECEx, ATEX, UKEX
• Gases II 2G Ex db eb IIC T6 Gb, Dusts II 2D Ex tb IIIC T80°C Db
• Process connection G1/4" or 1/2" internal thread
• Medium temperature -40...+150 °C
• Max. pressure resistance 40 bar
• Protection class IP65
Typical applications:
• Hydraulics
• II 2G/D
| Series | EXPK 944/947/953 |
|---|---|
| Product type | Pressure switch (pressostat) |
| Material (sensor) | Nickel-plated steel |
| Min. pressure (bar) | -40 |
| Max. pressure (bar) | 100 |
| Min. ambient temperature (°C) | -50 |
| Max. ambient temperature (°C) | 10 |
| Min. measurement range (bar) | 0 |
| Max. measurement range (bar) | 10 |
| Switching differential | 0.4...0.8bar |
| Process connection | G1/4" |
| IP-class | IP65 |
| Explosion-proof | Yes |
| Brand | Trafag |
