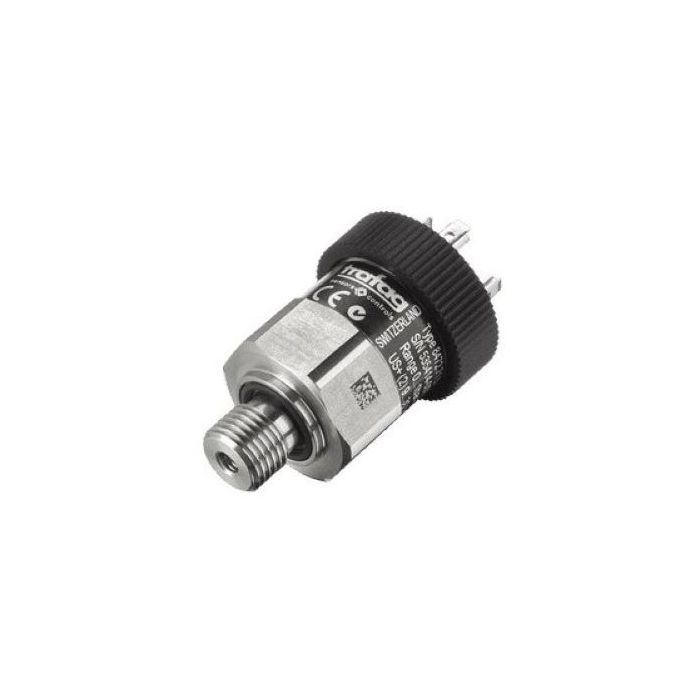

Pressure transmitter Trafag 52747
Lead time if the product is out of stock (business days):
35
EPN pressure transmitter 4-20 mA, with pressure shock absorber G ¼" external thread, approved for marine use
Technical features:
• Sensor material: 1.4542/17.4/AISI 630
• Fully welded sensor construction, no gaskets
• Max. working pressure: 48 bar
• Accuracy: ± 0.3% FS
• Operating temperature: -40...+125 °C
• Media temperature: -40...+125 °C
• Operating voltage: 9...32 DC
• EN 175301-803A
Technical features:
• Sensor material: 1.4542/17.4/AISI 630
• Fully welded sensor construction, no gaskets
• Max. working pressure: 48 bar
• Accuracy: ± 0.3% FS
• Operating temperature: -40...+125 °C
• Media temperature: -40...+125 °C
• Operating voltage: 9...32 DC
• EN 175301-803A
| Series | EPN 8288 |
|---|---|
| Product type | Pressure transmitter |
| Min. measurement range (bar) | 0 |
| Max. measurement range (bar) | 16 |
| Min. ambient temperature (°C) | -40 |
| Max. ambient temperature (°C) | 125 |
| Process connection | G1/4" |
| Connector type | EN 175301-803-A (DIN 43650-A) |
| Material (sensor) | AISI630 |
| IP-class | IP67 |
| Marine classification | DNV-GL |
| Brand | Trafag |
