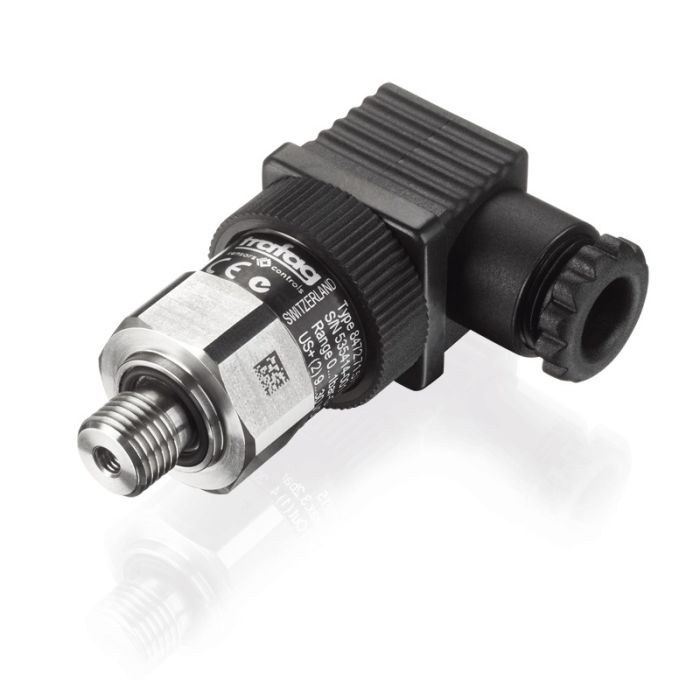

Pressure transmitter Trafag ECT16.0A
Lead time if the product is out of stock (business days):
35
ECT pressure transmitter 4-20 mA G ¼" external thread
• Sensor material ceramic, AISI 316L
• Max. working pressure 32 bar
• Operating temperature -25...+85 °C
• Medium temperature -25...+125 °C
• Operating voltage 9...30 VDC
• EN 175301-803 DIN43650-A electrical connector
• Models also available for absolute pressure ranges
• Sensor material ceramic, AISI 316L
• Max. working pressure 32 bar
• Operating temperature -25...+85 °C
• Medium temperature -25...+125 °C
• Operating voltage 9...30 VDC
• EN 175301-803 DIN43650-A electrical connector
• Models also available for absolute pressure ranges
| Series | ECT 8472 |
|---|---|
| Product type | Pressure transmitter |
| Min. measurement range (bar) | 0 |
| Max. measurement range (bar) | 16 |
| Min. ambient temperature (°C) | -25 |
| Max. ambient temperature (°C) | 125 |
| Process connection | G1/4" |
| Output signal | 4...20mA |
| Connector type | EN 175301-803-A (DIN 43650-A) |
| Material (sensor) | Ceramic |
| IP-class | IP65 |
| Brand | Trafag |
