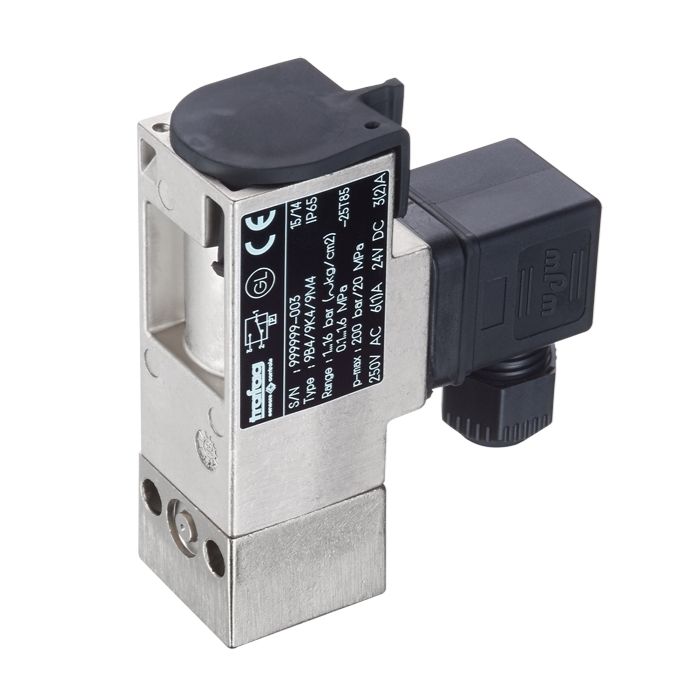

Pressure switch (pressostat) Trafag PST4B64
Lead time if the product is out of stock (business days):
28
Pressure switch TRAFAG PST4B64, adjustment range 0...6 bar, IP65, max. pressure 12 bar, differential range 0.3 bar, G1/4" internal thread or plate mounting, bellows sensor.
• Sensor material: bronze
• Operating temperature: –40… +85 °C
• Permissible temperature of the medium: –40… +125 °C
• EN175301-803-A with junction box
• AC 250 V 6 (1) A
• DC 24 V 3 (2) A
• DC 220 V 0.25 (0.1) A
• Sensor material: bronze
• Operating temperature: –40… +85 °C
• Permissible temperature of the medium: –40… +125 °C
• EN175301-803-A with junction box
• AC 250 V 6 (1) A
• DC 24 V 3 (2) A
• DC 220 V 0.25 (0.1) A
| Series | PST4B 9B4 |
|---|---|
| Product type | Pressure switch (pressostat) |
| Max. pressure (bar) | 12 |
| Min. ambient temperature (°C) | -40 |
| Max. ambient temperature (°C) | 125 |
| Min. measurement range (bar) | 0 |
| Max. measurement range (bar) | 6 |
| Switching differential | 0,3 bar |
| Process connection | G 1/4" |
| Material (sensor) | Pronssi |
| IP-Class | IP65 |
| Output signal | 1 vaihtokosketin (SPDT) |
| Manual reset | ei |
| Explosion-proof version | No |
| Marine classification | ABS, BV, CCS, DNV-GL, KRS, LR, NKK, RINA, RMRS |
| WRAS | No |
| Manufacturer | Trafag |
| HVAC | 4564301 |
| Electrical number | 2729054 |
| Manufacturer code | PST4B64 |
