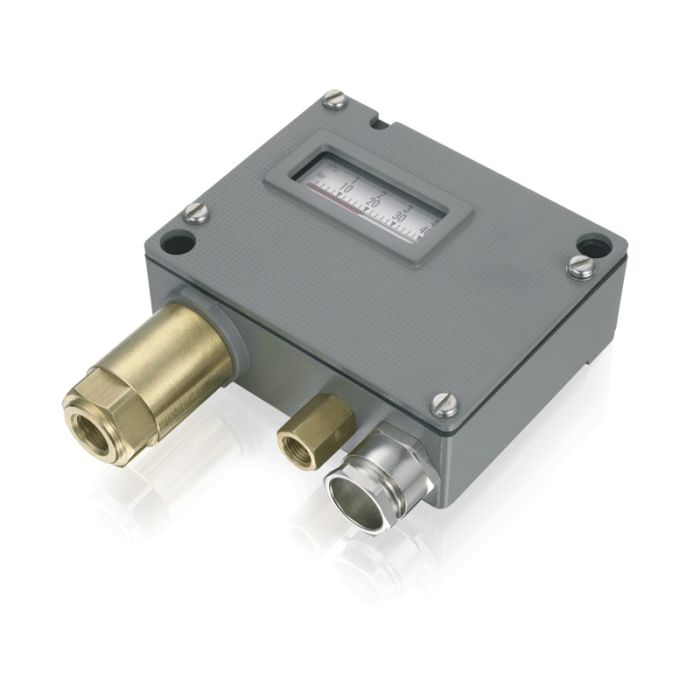

Pressure switch (pressostat) Trafag PVF1.5
Lead time if the product is out of stock (business days):
28
Pressure switch TRAFAG PVF1.5 adjustable difference range G 1/4" internal thread, bellows sensor, with changeover contact, IP 65, adjustment range -0.9...1.5 bar, difference range adjustment 0.06...0.2 bar , max. pressure 10, øY 45, X 56.5.
• Sensor material: bronze/brass
• Operating temperature: -25… 70 °C
• Medium temperature: -40… 150 °C
• AC 500V 10 (0.75) A
• DC 30 V 15 (1.5) A
• DC 250 V 0.3 (0.2) A
• Sensor material: bronze/brass
• Operating temperature: -25… 70 °C
• Medium temperature: -40… 150 °C
• AC 500V 10 (0.75) A
• DC 30 V 15 (1.5) A
• DC 250 V 0.3 (0.2) A
| Series | PV/PVF 903/907/915/940/941/942 |
|---|---|
| Product type | Pressure switch (pressostat) |
| Max. pressure, bar | 10.00 |
| Min. ambient temperature, °C | -40.00 |
| Max. ambient temperature, °C | 150.00 |
| Min. measurement range, bar | -0.90 |
| Max. measurement range, bar | 1.50 |
| Switching differential | 0,06...0,2 bar |
| Process connection | G 1/4" |
| Sensor material | Pronssi/messinki |
| IP-Class | IP65 |
| Output signal | 1 vaihtokosketin (SPDT) |
| Manual reset | ei |
| Marine Class | ABS, BV, CCS, GL, KRS, LRS, RINA |
| WRAS | No |
| SIL | No |
| Manufacturer | Trafag |
| HVAC | 4565122 |
| Electrical number | 2701034 |
| Manufacturer code | PVF1.5 |
