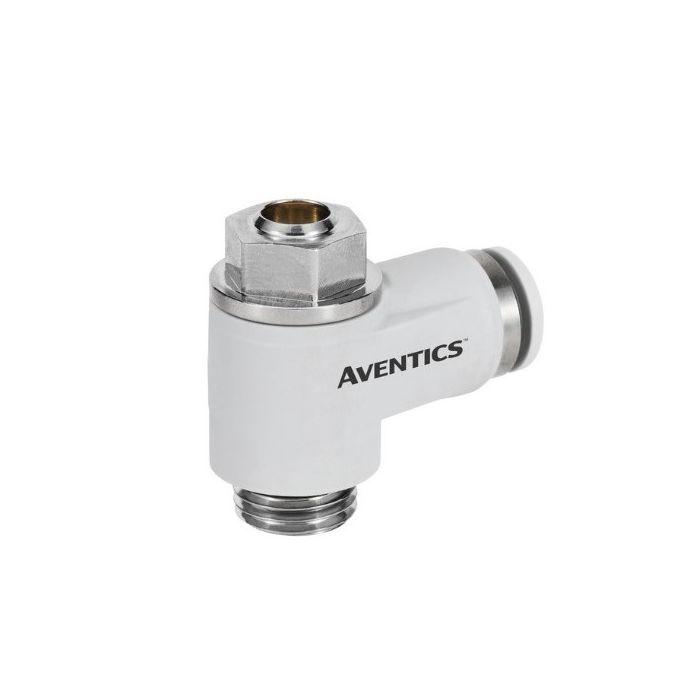

Flow valve AVENTICS R412010571

Lead time if the product is out of stock (business days):

35
AVENTICS Series CC

• Check-choke valves are designed for nominal flows from 70 to 1950 l/min
• Different versions are available with a push-in fitting or internal thread
Technical specifications
Series CC04
Product type Flow valve
Port 1 ø6
Port 2 G1/4
Throttle bore Ø (mm) 4.5
Rated current Qn (l/min) 390
Gas direction 2 ▶ 1
Compressed air connection type 1 Push-in fitting
Compressed air connection type 2 External thread
Min. ambient temperature (°C) -10
Max. ambient temperature (°C) 60
Min. pressure (bar) 0.5
Max. pressure (bar) 10
Throttle Exhaust Air Throttling
Material (housing) Polyamide
Material Brass
Sealing material Acrylonitrile butadiene rubber
Brand AVENTICS
