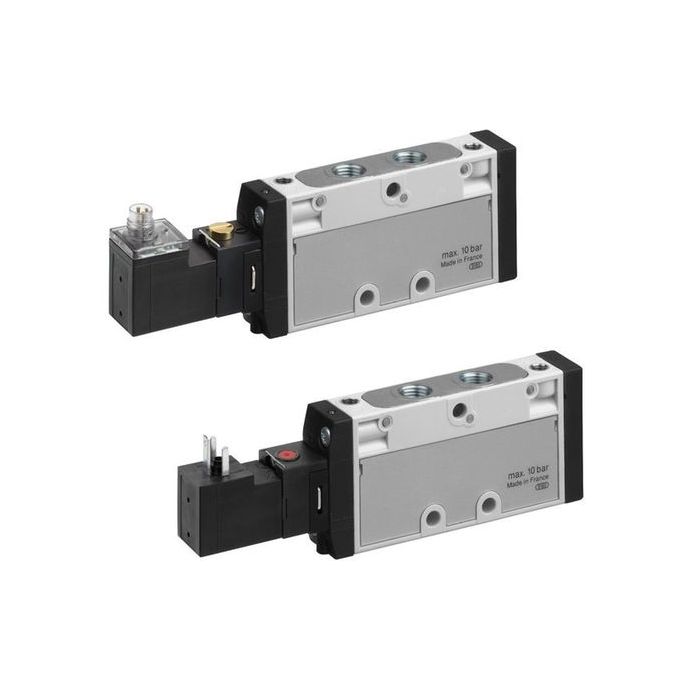

Pneumatic valve AVENTICS R422103046
Lead time if the product is out of stock (business days):
35
AVENTICS Series TC08
• TC08 valve system is the perfect choice for applications calling for lightweight valves with high flow rate in a small space
• Valves operated either pneumatically or electrically, the valve system can be modularly expanded to up to 12 valves
• Valves can be exchanged without dismantling the valve block
• TC08 valve system is the perfect choice for applications calling for lightweight valves with high flow rate in a small space
• Valves operated either pneumatically or electrically, the valve system can be modularly expanded to up to 12 valves
• Valves can be exchanged without dismantling the valve block
| Series | TC08 |
|---|---|
| Activation | Electrical |
| Valve type | 5/2 |
| Rated current Qn (l/min) | 800 |
| Min. working pressure (bar) | 3 |
| Max. working pressure (bar) | 10 |
| Min. ambient temperature (°C) | -10 |
| Max. ambient temperature (°C) | 50 |
| Min. control pressure (bar) | 3 |
| Max. control pressure (bar) | 10 |
| Actuation | Internal |
| Compressed air connection output | G1/8 |
| Manual override | By withholding |
| Electrical connection 2 | Plug |
| Electrical connection size | ISO 15217, Form C |
| Using the control | One solenoid |
| Sealing Principle | Soft seal |
| Connection type | Pipe |
| Return | With spring/air spring return |
| Mid-range | Compressed air |
| Flow conductance, l/(s*bar) C | 3.5 |
| Width Control valve (mm) | 15 |
| Max. particle size (µm) | 5 |
| IP-class | IP65 |
| Brand | AVENTICS |
