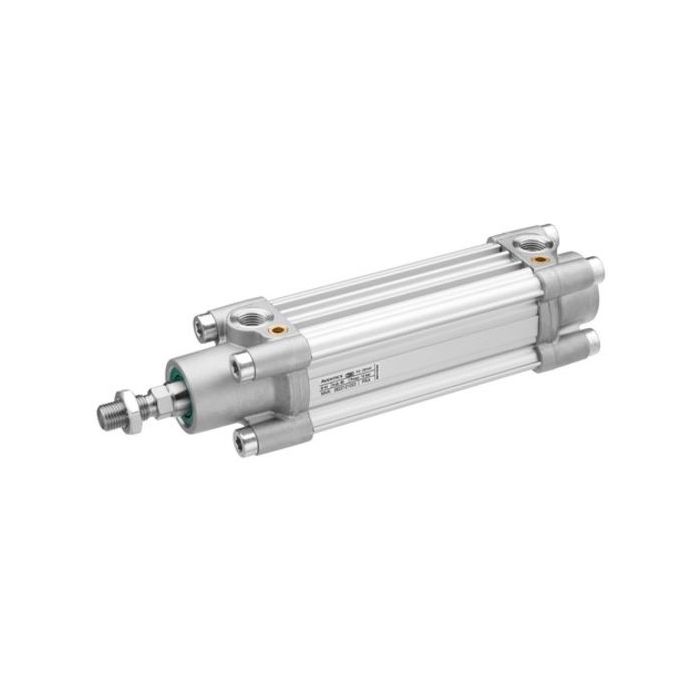

Pneumatic cylinder AVENTICS R480140833
Lead time if the product is out of stock (business days):
35
AVENTICS Series PRA (ISO 15552)
• PRA Series cylinders have a compact design profile with integrated sensor slots
• PRA (ISO 15552) cylinders can be used for all industries including general automation technology, machine and systems construction, as well as specific industry applications
• PRA Series cylinders have a compact design profile with integrated sensor slots
• PRA (ISO 15552) cylinders can be used for all industries including general automation technology, machine and systems construction, as well as specific industry applications
| Series | PRA |
|---|---|
| Piston diameter (mm) | 125 |
| Stroke (mm) | 200 |
| Principle | Double acting |
| Stuffing | Pneumatic/adjustable |
| With or without magnet | With magnet |
| Min. ambient temperature (°C) | -20 |
| Max. ambient temperature (°C) | 80 |
| Pressure (bar) | 6.3 |
| Min. pressure (bar) | 1.5 |
| Max. pressure (bar) | 10 |
| Retraction force of piston (N) | 7220 |
| Piston removal force (N) | 7725 |
| Max. pace | 2750mm |
| Coupling | G1/2 |
| Piston rod thread | M27 x 2 |
| Material | Polyurethane (PU) |
| Standard | ISO 15552 |
| Explosion-proof | Optional |
| Brand | AVENTICS |
