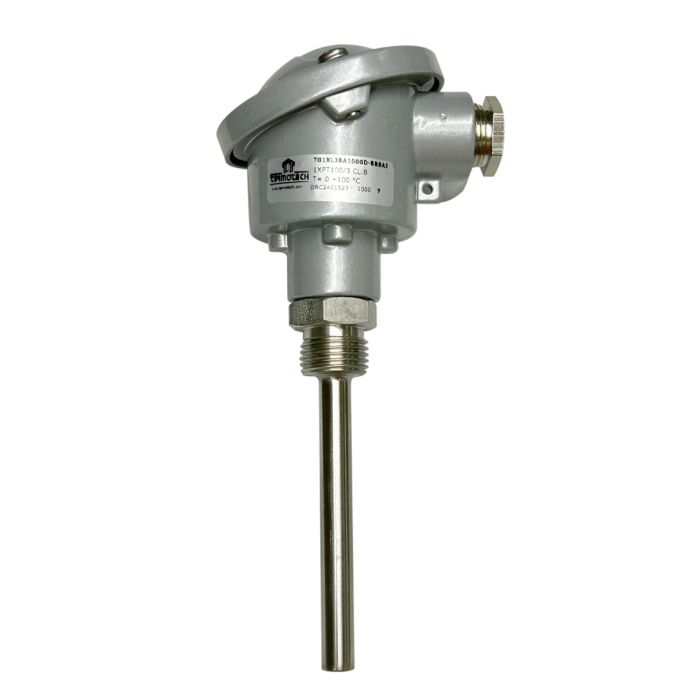

Temperature transmitter Termotech RTG1XL3BA250GD-BBSA3
Lead time if the product is out of stock (business days):
32
RTG Mineral insulated PT100 resistance thermometer with 4-20 mA output Din-B junction box
Characteristics:
• 2-wire programmable 4-20 mA transmitter, HART available as an option
• Measuring temperature range scalable from -80...+600 °C
• The sensor insert is replaceable
• Sensor ø10
• Protection IP54
• Cable entry M20x1.5
• Process thread G1/2" (others available)
• Sensor material: AISI316
Typical applications:
• Power plants
• Process industry
• Chemical industry
• Machine and shipbuilding
• Universal technology
Characteristics:
• 2-wire programmable 4-20 mA transmitter, HART available as an option
• Measuring temperature range scalable from -80...+600 °C
• The sensor insert is replaceable
• Sensor ø10
• Protection IP54
• Cable entry M20x1.5
• Process thread G1/2" (others available)
• Sensor material: AISI316
Typical applications:
• Power plants
• Process industry
• Chemical industry
• Machine and shipbuilding
• Universal technology
| Series | RTG |
|---|---|
| Product type | Temperature transmitter |
| Min. ambient temperature (°C) | -40 |
| Max. ambient temperature (°C) | 85 |
| Min. measurement range (°C) | -80 |
| Max. measurement range (°C) | 600 |
| Supply voltage | 8.5...32V DC |
| Process connection | G1/2" |
| Output signal | 4...20mA |
| Programmable | Yes |
| Material (sensor) | AISI316 |
| Dimensions | ø10 x 250mm |
| IP-class | IP54 |
| Brand | Termotech |
