PT100 Termotech RTG1PL3BA250GD50BV-
Lead time if the product is out of stock (business days):
32

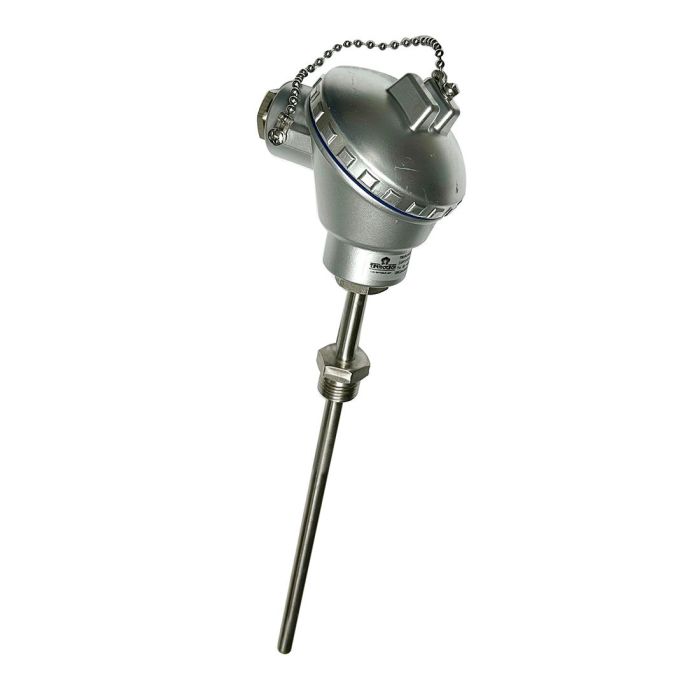

RTGE Mineral insulated PT100 3-wire resistance thermometer DNAG junction box
Characteristics:
• 3-wire PT100 class B
• Measuring range -80...+600 °C
• The sensor insert is replaceable
• Sensor: ø10 mm
• Protection: IP65
• Cable entry M20x1.5
• Process thread G1/2" (others available)
• Sensor material AISI316
Typical applications:
• Power plants
• Process industry
• Chemical industry
• Machine and shipbuilding
• Universal technology
Characteristics:
• 3-wire PT100 class B
• Measuring range -80...+600 °C
• The sensor insert is replaceable
• Sensor: ø10 mm
• Protection: IP65
• Cable entry M20x1.5
• Process thread G1/2" (others available)
• Sensor material AISI316
Typical applications:
• Power plants
• Process industry
• Chemical industry
• Machine and shipbuilding
• Universal technology
| Series | RTGE |
|---|---|
| Product type | Temperature sensor |
| Min. measurement range (°C) | -80 |
| Max. measurement range (°C) | 600 |
| Material (sensor) | AISI316 |
| Process connection | G1/2" |
| Dimensions | 10 x 100mm, 50mm insulation reserve |
| IP-class | IP65 |
| Brand | Termotech |
