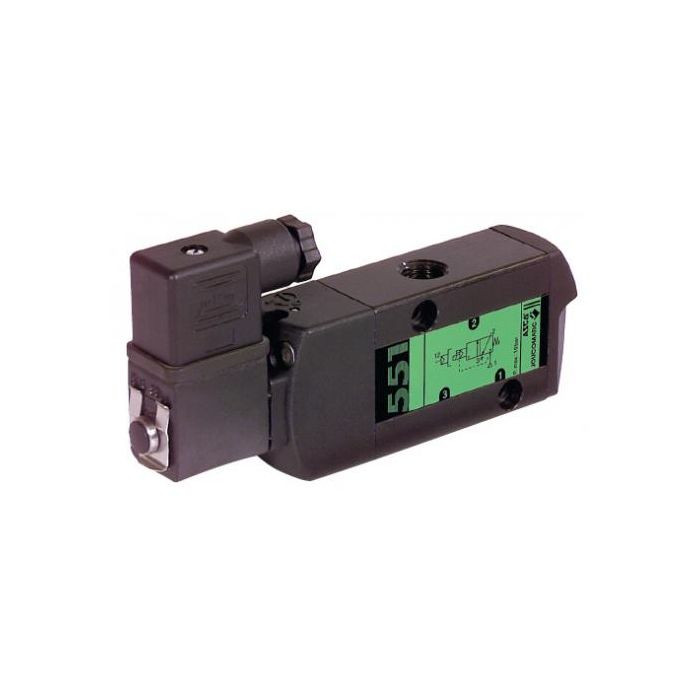

Solenoid valve ASCO G551A0057BD2
Lead time if the product is out of stock (business days):
23
• Monostable spool valves have TÜV-EXIDA certified IEC 61508 Functional Safety data and can be used up to SIL 4 (551/TÜV)-SIL 3 (552-553/EXIDA)
• The spool valves 5/2 and 5/3 have threaded port connections
• All the exhaust ports of this spool valve are connectable, providing better environmental protection, particularly recommended for sensitive areas such as clean rooms, and applications in the pharmaceutical and food processing sectors
• The valve offers environmental protection against the ingress of liquids, dusts or any other foreign matter
• Epoxy moulded coil for general service applications
• The solenoid valves satisfy all relevant EC Directives
• The spool valves 5/2 and 5/3 have threaded port connections
• All the exhaust ports of this spool valve are connectable, providing better environmental protection, particularly recommended for sensitive areas such as clean rooms, and applications in the pharmaceutical and food processing sectors
• The valve offers environmental protection against the ingress of liquids, dusts or any other foreign matter
• Epoxy moulded coil for general service applications
• The solenoid valves satisfy all relevant EC Directives
| Series | SCG551 |
|---|---|
| Product type | 3-way solenoid valve |
| Material (body) | Aluminum |
| Valve function | 5/2 |
| Media | Air, inert gases |
| Size | 1/4" |
| Supply voltage | 24V DC |
| Flow-through factor (Kv, m3/h) | 0.75 |
| Min. ambient temperature (°C) | -25 |
| Max. ambient temperature (°C) | 60 |
| Min. pressure (bar) | 2 |
| Max. pressure (bar) | 10 |
| Brand | ASCO |
