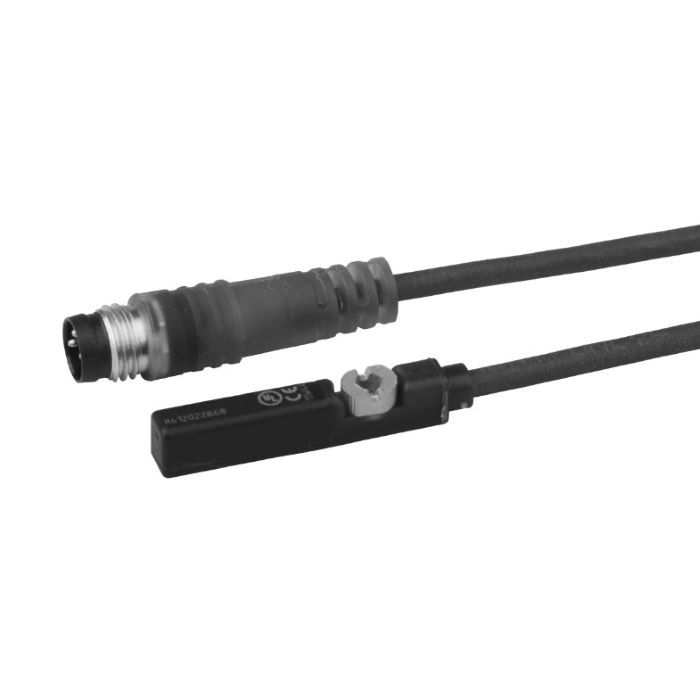

Sensor AVENTICS R412022872
Lead time if the product is out of stock (business days):
35
AVENTICS Series ST6
• Sensors are suitable for mounting in the 6mm T-slot as well as sensor mounting to the cylinder
• They are suited for mounting to all AVENTICS round cylinders, tie rod cylinders, and profile cylinders
• With their optimized, compact shape, the sensors can be flush-fit into existing slots and integrated into any machine environment, even with sensor mounting
• Retaining ribs on the side of the sensor enable simple mounting, including in hard-to-reach locations or for overhead assembly
• The durable mounting screw holds the sensor in the desired position and can withstand shocks or vibrations
• Sensors are suitable for mounting in the 6mm T-slot as well as sensor mounting to the cylinder
• They are suited for mounting to all AVENTICS round cylinders, tie rod cylinders, and profile cylinders
• With their optimized, compact shape, the sensors can be flush-fit into existing slots and integrated into any machine environment, even with sensor mounting
• Retaining ribs on the side of the sensor enable simple mounting, including in hard-to-reach locations or for overhead assembly
• The durable mounting screw holds the sensor in the desired position and can withstand shocks or vibrations
| Series | ST6 |
|---|---|
| Product type | Sensor |
| Number of poles | 3-pin |
| Version | UL-certificate |
| Switching logic | No (make contact) |
| Hysteresis | ≥0.2mT |
| Direct mounting for series | SSI |
| Indirect mounting for series | TRR |
| Slot width | 6mm t-slot |
| Cable | With cable |
| Contact type | Reed |
| Voltage drop U at Imax | ≤0.1V |
| Max. DC switching current | 0.3A |
| Max. switching frequency | 400Hz |
| Switching point precision | ±0,1mT |
| LED status display | Yellow |
| Electrical connection | Plug |
| Electrical connection 2 | M8 x 1 |
| Max. AC switching current | 0.5A |
| Min. operating voltage (DC) | 10V DC |
| Min. operating voltage (AC) | 10V AC |
| Max. operating voltage (DC) | 30V DC |
| Max. operational voltage (AC) | 30V AC |
| Min. ambient temperature (°C) | -30 |
| Max. ambient temperature (°C) | 80 |
| IP-class | IP67 |
| Brand | AVENTICS |
