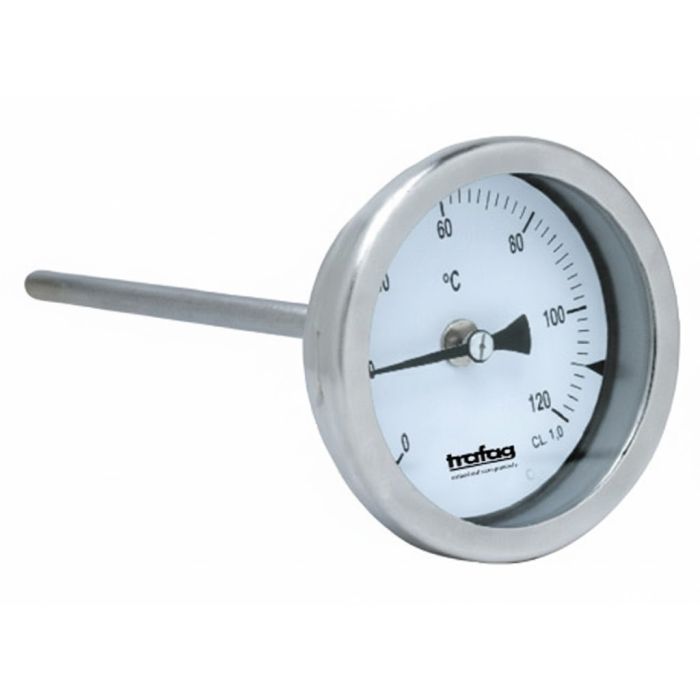

Thermometer Trafag TMT501-25-C11-R0-M60-ER-150-KW-12B
Lead time if the product is out of stock (business days):
50
The bimetallic thermometer TMT501 offers a wide range of options and features for general use.
Bimetallic thermometer, housing AISI 304 and wetted parts AISI 316L, accuracy class CL 1.0.
Features:
• Bimetallic helix spiral sensor
• Hermetically sealed
• Probe length max. 1.5 m
• Optional 0 point adjustment
Bimetallic thermometer, housing AISI 304 and wetted parts AISI 316L, accuracy class CL 1.0.
Features:
• Bimetallic helix spiral sensor
• Hermetically sealed
• Probe length max. 1.5 m
• Optional 0 point adjustment
| Series | TMT501 |
|---|---|
| Product type | Thermometer |
| Min. measurement range (°C) | -50 |
| Max. measurement range (°C) | 100 |
| Min ambient temperature (°C) | -20 |
| Max ambient temperature (°C) | 80 |
| Process connection | G1/4" |
| Version | 63mm dial diameter |
| Measuring instrument type | Bimetallic thermostat |
| Material (sensor) | AISI316L |
| IP-class | IP66 |
| Brand | Trafag |
