Temperature sensor Italcoppie TRM#P1A-3--0150X
Lead time if the product is out of stock (business days):

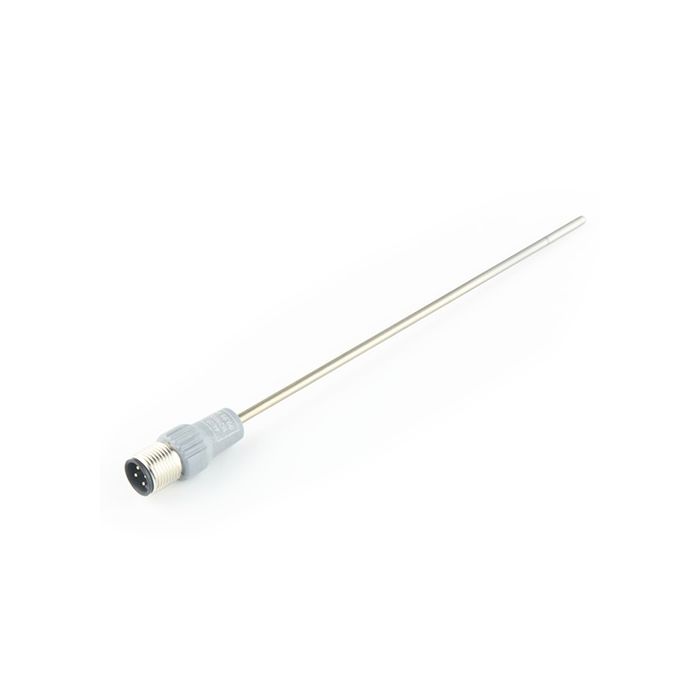

20TRM Mineral insulated PT100 resistance sensor with M12 connector
Features:
• Sensor element IEC751 class A
• Measuring temperature range -30...+300 °C
• Sensor ø3 mm, response time 3 sec.
• Connection 4-wire
• Connector M12x1.5
• Sensor material AISI316L
• IP67
Typical applications:
• Food industry
• Chemical industry
• Mechanical engineering
• Factory technology
Features:
• Sensor element IEC751 class A
• Measuring temperature range -30...+300 °C
• Sensor ø3 mm, response time 3 sec.
• Connection 4-wire
• Connector M12x1.5
• Sensor material AISI316L
• IP67
Typical applications:
• Food industry
• Chemical industry
• Mechanical engineering
• Factory technology
Series | TRM |
---|---|
Product type | Temperature sensor |
Min. measurement range (°C) | -30 |
Max. measurement range (°C) | 300 |
Material (sensor) | AISI316L |
Dimensions | ø3 x 150mm |
IP-Class | IP67 |
Brand | Italcoppie |
