V203 | Ball valve with pneumatic actuator | DN10 / 3/8" | PN63 | Female thread | Acid-resistant stainless steel | Spring return actuator
Lead time if the product is out of stock (business days):
28

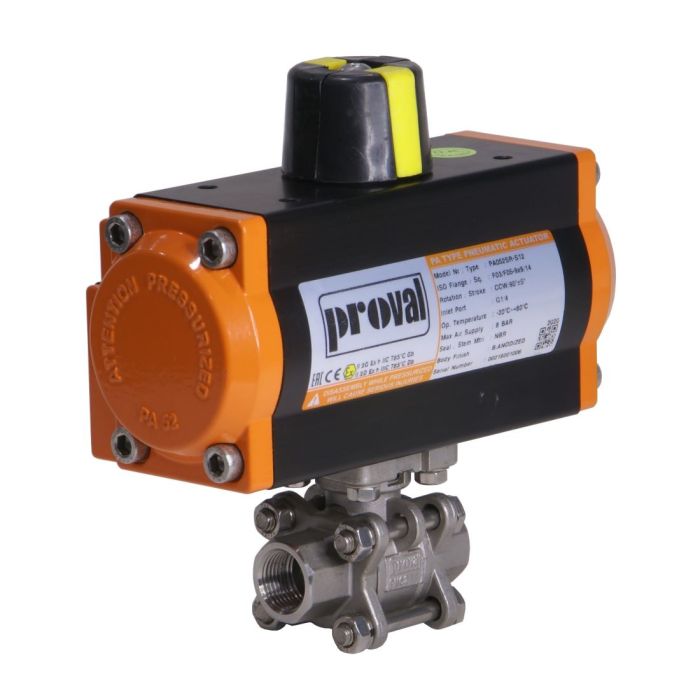

V203 3-Piece Acid-Resistant Ball Valve with A210 actuator assembly
Acid-resistant ball valves designed for demanding applications with corrosive media or environments that cause corrosion. Typical applications include the chemical industry, pulp & paper industry, machinery manufacturing, and mobile equipment.
The rack and pinion actuator is pre-dimensioned to suit normal operating conditions within specified pressure and temperature ranges.
Features:
Available in DN8-100
Available with female threads or short weld ends
Available with double-acting or spring-return actuator
ISO 5211 actuator mounting flange
Acid-resistant ball valves designed for demanding applications with corrosive media or environments that cause corrosion. Typical applications include the chemical industry, pulp & paper industry, machinery manufacturing, and mobile equipment.
The rack and pinion actuator is pre-dimensioned to suit normal operating conditions within specified pressure and temperature ranges.
Features:
Available in DN8-100
Available with female threads or short weld ends
Available with double-acting or spring-return actuator
ISO 5211 actuator mounting flange
| Series | V203 |
|---|---|
| Product type | Ball valve with pneumatic actuator |
| Nominal size (DN) | 10 |
| Pipe connection | Female thread |
| Connection size | 3/8" |
| Thread standard | ISO 7/1 Rp |
| Pressure class | PN63 |
| Material (body) | Acid-resistant stainless steel |
| Trim material | AISI316 |
| Sealing material | RPTFE |
| Tightness direction | Bidirectional |
| Pneumatic action | Spring return |
| ISO5211 actuator mounting | Yes |
| Max. ambient temperature (°C) | 230 |
| Min. ambient temperature (°C) | -60 |
| Brand | Proval |
| Actuator description | PA052SR |
