Local display KEM Küppers VTG/VIG
Lead time if the product is out of stock (business days):
35KEM Küppers Series VTG/VIG

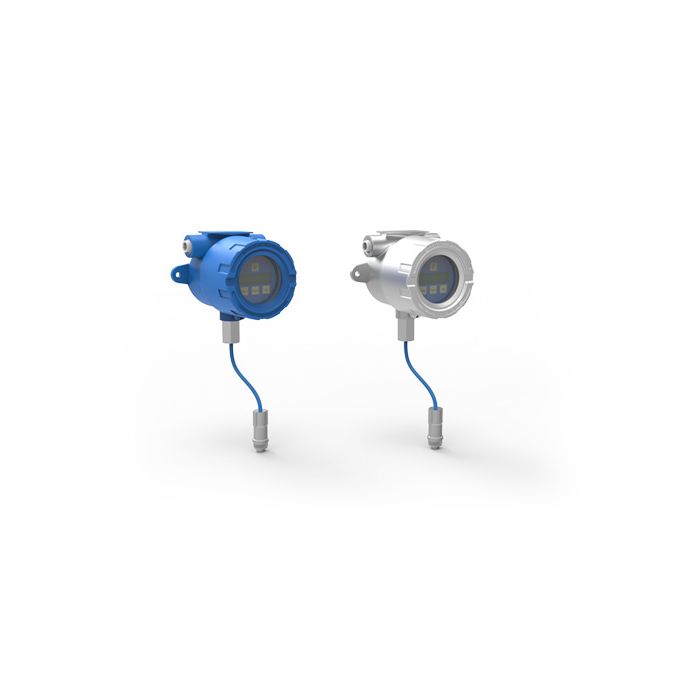

• Compact on-site display with external carrier frequency or inductive sensor for the evaluation of volume flows.
• All measurement results and parameters relevant for the process can be shown directly on the VTG/VIG via the graphic display
• 3 linearization banks with 20 points each are available to improve the accuracy. They are used to linearize the measurement signal depending on the chosen operating mode (external control, fixed assignment).
• In pure 2-conductor operation (4 - 20 mA) the instantaneous value (flow) is
dimensionally output on the current loop according to the programming.
• A programmable digital output and a maximum of two control inputs are available in addition for further processing and control.
• Interface that allows operating parameters to be set and measured values to be read with the help of the CON.USB interface adapter and the “KEM EasyControl” visualization software. Optionally this interface can also be carried out as HART or USB.
• The electrical connection is realized via a screw terminal strip that is exposed when the front cover is unscrewed and the display unit is flipped open.
• Compact on-site display with external carrier frequency or inductive sensor for the evaluation of volume flows.
• All measurement results and parameters relevant for the process can be shown directly on the VTG/VIG via the graphic display
• 3 linearization banks with 20 points each are available to improve the accuracy. They are used to linearize the measurement signal depending on the chosen operating mode (external control, fixed assignment).
• In pure 2-conductor operation (4 - 20 mA) the instantaneous value (flow) is
dimensionally output on the current loop according to the programming.
• A programmable digital output and a maximum of two control inputs are available in addition for further processing and control.
• Interface that allows operating parameters to be set and measured values to be read with the help of the CON.USB interface adapter and the “KEM EasyControl” visualization software. Optionally this interface can also be carried out as HART or USB.
• The electrical connection is realized via a screw terminal strip that is exposed when the front cover is unscrewed and the display unit is flipped open.
Series | VTG/VIG |
---|---|
Product type | Local display |
Brand | KEM Küppers |
