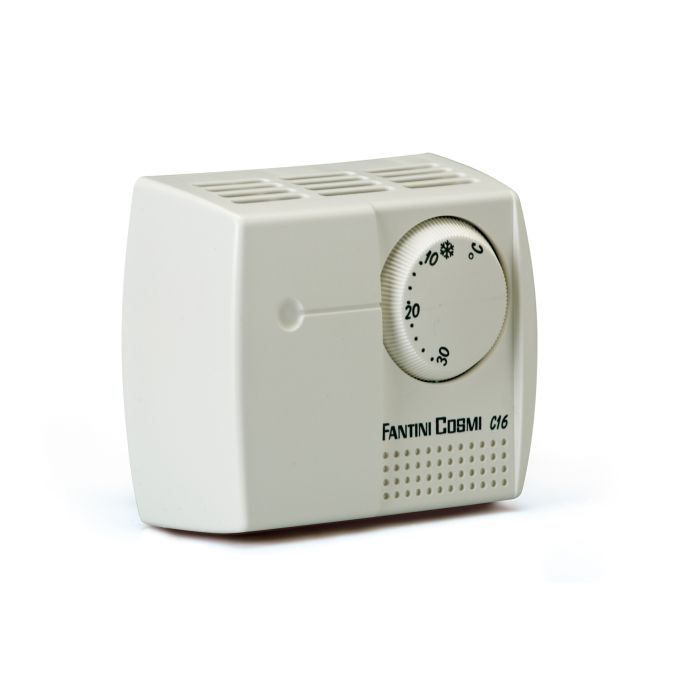

Room thermostat Fantini Cosmi C16IL
Lead time if the product is out of stock (business days):
27
Fantini Cosmi series C16 electromechanical room thermostats with vapor expansion.
Room thermostats for ambient temperature control in heating systems, in civil and industrial cooling applications.
General features:
• Room thermostat C16IL with ON-OFF switch and pilot light
• Sensitive element with electrically welded stainless steel capsule containing saturated vapor
• Base, cover and knob in thermoplastic material
• Connection with the user with only 2 wires
• Action type 1B
• Protection class I
• Testing class II
Room thermostats for ambient temperature control in heating systems, in civil and industrial cooling applications.
General features:
• Room thermostat C16IL with ON-OFF switch and pilot light
• Sensitive element with electrically welded stainless steel capsule containing saturated vapor
• Base, cover and knob in thermoplastic material
• Connection with the user with only 2 wires
• Action type 1B
• Protection class I
• Testing class II
| Series | C16 |
|---|---|
| Product type | Room thermostat |
| Min. measurement range (°C) | 10 |
| Max. measurement range (°C) | 30 |
| IP-Class | IP20 |
| Changeover contact | 10(2,5)A / 250VAC |
| Explosion-proof version | No |
| WRAS | No |
| Manufacturer | Fantini Сosmi |
| HVAC | 4363131 |
| Electrical number | 2634307 |
| Manufacturer code | C16IL |
