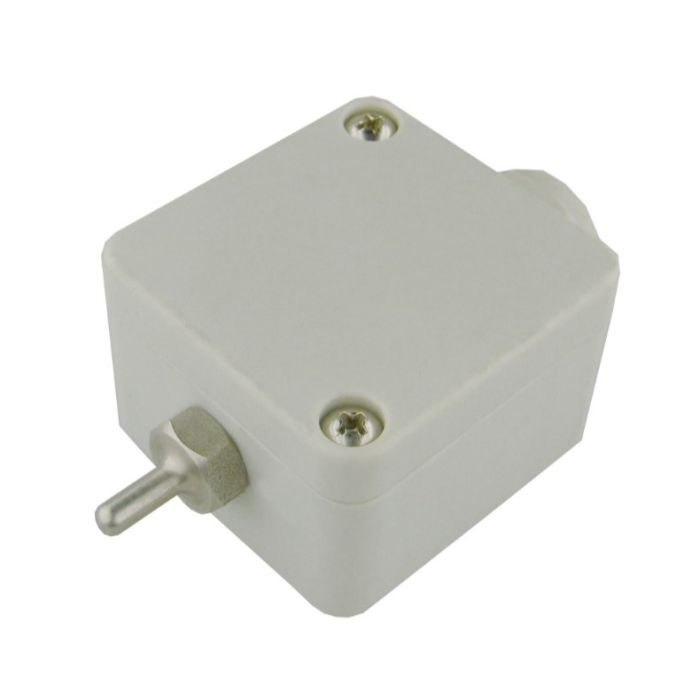

Temperature transmitter Italcoppie SCAT#AP1AQX
Lead time if the product is out of stock (business days):
5
SCAT PT100 Room/Outdoor temperature resistance sensor with 4-20 mA output
Features:
• Sensor element EN-60751 class A or B
• Measuring temperature range -50...+80 °C
• Sensor ø4.5 x 13 mm
• Connection 2-wire 4-20 mA
• Wall mounting
• Dimensions 50 x 91 x 34 mm
• Housing material plastic
• IP65/67
Features:
• Sensor element EN-60751 class A or B
• Measuring temperature range -50...+80 °C
• Sensor ø4.5 x 13 mm
• Connection 2-wire 4-20 mA
• Wall mounting
• Dimensions 50 x 91 x 34 mm
• Housing material plastic
• IP65/67
| Series | SCAT |
|---|---|
| Product type | Temperature transmitter |
| Min. ambient temperature (°C) | -50 |
| Max. ambient temperature (°C) | 80 |
| Min. measurement range (°C) | -50 |
| Max. measurement range (°C) | 80 |
| Supply voltage | 10...30V DC |
| Output signal | 4...20mA |
| Programmable | Yes |
| Material (sensor) | AISI304 |
| Dimensions | 91 x 50 x 35mm |
| IP-class | IP65 |
| Brand | Italcoppie |
