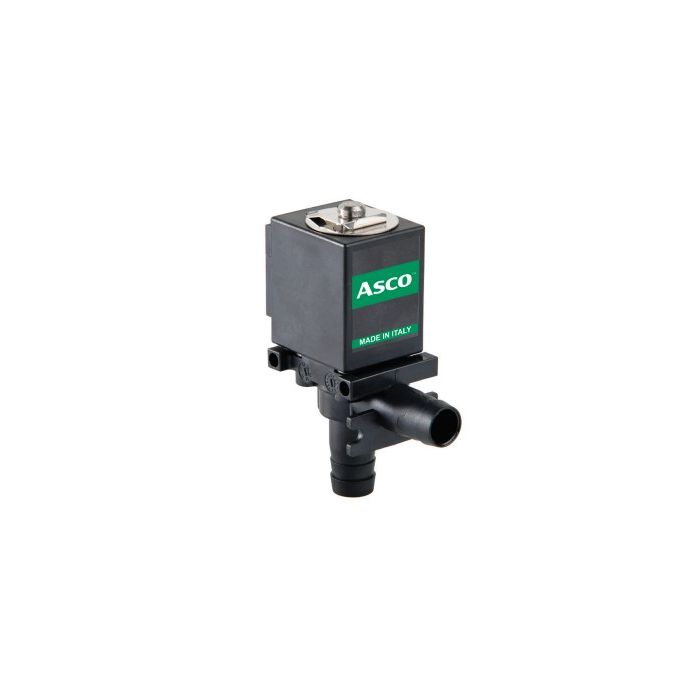

Solenoid valve ASCO D136V01-ZA10A BPX9,5 V230/50HZ
Lead time if the product is out of stock (business days):
50
General features of D series valves:
• Total isolation solenoid valves (DRY) combine the traditional characteristics of strength and reliability, with construction solutions that make them particularly suitable for the control of aggressive and/or no contaminable fluids
• These valves are available in 2/2 or 3/2 normally closed, open or universal service versions, plus miniaturized or silent versions with a latching actuator
• The diverse range of features make these valves versatile for applications in food, biotechnology, chemical/pharmaceutical, and physiological/medial industries
Features D136/D137:
• Size: D136 - straight hose connector 13.5mm. D137 - direct, size 1½"-2", DN40-DN50
• Fluids: water, air, oil and inert gases
• MATERIALS IN CONTACT WITH FLUID: PPS (polyphenylene sulfide) reinforced). Seals: D132 - EPDM, FPM or SBR. D332 – FPM.
• This valve is delivered with a connector
Technical data:
• Maximum pressure (PS): 0.5/0.3 bar
• Opening time: 40/400 ms
• Closing time: 40/400 ms
• Fluid temperature: +10/-10… 90 °C
• Maximum viscosity: 37 cSt (mm2/s)
• Total isolation solenoid valves (DRY) combine the traditional characteristics of strength and reliability, with construction solutions that make them particularly suitable for the control of aggressive and/or no contaminable fluids
• These valves are available in 2/2 or 3/2 normally closed, open or universal service versions, plus miniaturized or silent versions with a latching actuator
• The diverse range of features make these valves versatile for applications in food, biotechnology, chemical/pharmaceutical, and physiological/medial industries
Features D136/D137:
• Size: D136 - straight hose connector 13.5mm. D137 - direct, size 1½"-2", DN40-DN50
• Fluids: water, air, oil and inert gases
• MATERIALS IN CONTACT WITH FLUID: PPS (polyphenylene sulfide) reinforced). Seals: D132 - EPDM, FPM or SBR. D332 – FPM.
• This valve is delivered with a connector
Technical data:
• Maximum pressure (PS): 0.5/0.3 bar
• Opening time: 40/400 ms
• Closing time: 40/400 ms
• Fluid temperature: +10/-10… 90 °C
• Maximum viscosity: 37 cSt (mm2/s)
| Series | D136 |
|---|---|
| Product type | 2-way solenoid valve |
| Material (body) | Plastic |
| Valve function | 2-way normally closed NC |
| Media | Water, air, oil |
| Supply voltage | 230V AC |
| Frequency | 50Hz |
| Min. ambient temperature (°C) | -10 |
| Max. ambient temperature (°C) | 60 |
| Min. fluid temperature (°C) | 0 |
| Max. fluid temperature (°C) | 100 |
| Min. pressure (bar) | 0.35 |
| Max. pressure (bar) | 6 |
| IP-Class | IP65 |
| Brand | ASCO |
