Double Stack-Hybrid Linear Stepper Motor Haydon Kerk, 28000 Ø 28 mm
Lead time if the product is out of stock (business days):
35

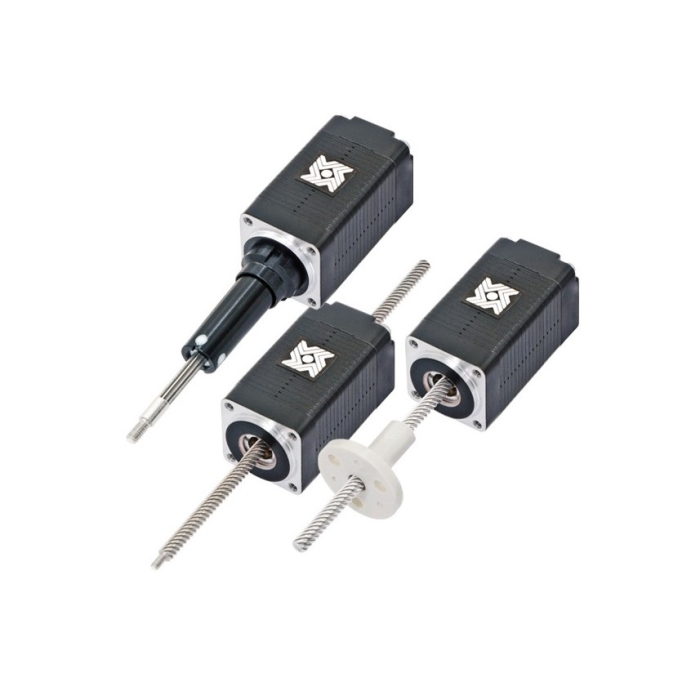

Series 28000 by Haydon Kerk Motion Solutions is a 28 mm stepper motor linear actuator.
• Available in three designs - captive, non-captive and external linear versions
• Stroke (non-captive, external), up to 250 mm
• Stroke (captive), 12.7 - 63.5 mm
• Max. force 30 - 133 N
• Movement / step 3 - 50 μm
Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
• Available in three designs - captive, non-captive and external linear versions
• Stroke (non-captive, external), up to 250 mm
• Stroke (captive), 12.7 - 63.5 mm
• Max. force 30 - 133 N
• Movement / step 3 - 50 μm
Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
| Size 8, 28 mm Double Stack Hybrid Stepper Motor (1.8° step angle) | ||||||
| Product No. | Captive | 28M4(X)-V | ||||
| Non-captive | 28L4(X)-V | |||||
| External lin. | E28M4(X)-V | |||||
| Wiring | Bipolar | |||||
| Winding Voltage | 2.1 VDC | 5 VDC | 12 VDC | |||
| Current/Phase | 1.9 A | 750 mA | 350 mA | |||
| Resistance/Phase | 1.1 Ω | 6.7 Ω | 34.8 Ω | |||
| Inductance/Phase | 1.1 mH | 5.8 mH | 35.6 mH | |||
| Power Input | 7.5 W | |||||
| Weight | 180 g | |||||
| Length | 46 mm | |||||
| Series | Double Stack |
|---|---|
| Product type | Linear stepper motor |
| Brand | Haydon Kerk |
