Double Stack-Hybrid Linear Stepper Motor Haydon Kerk, 35000 Ø 35 mm
Lead time if the product is out of stock (business days):
35

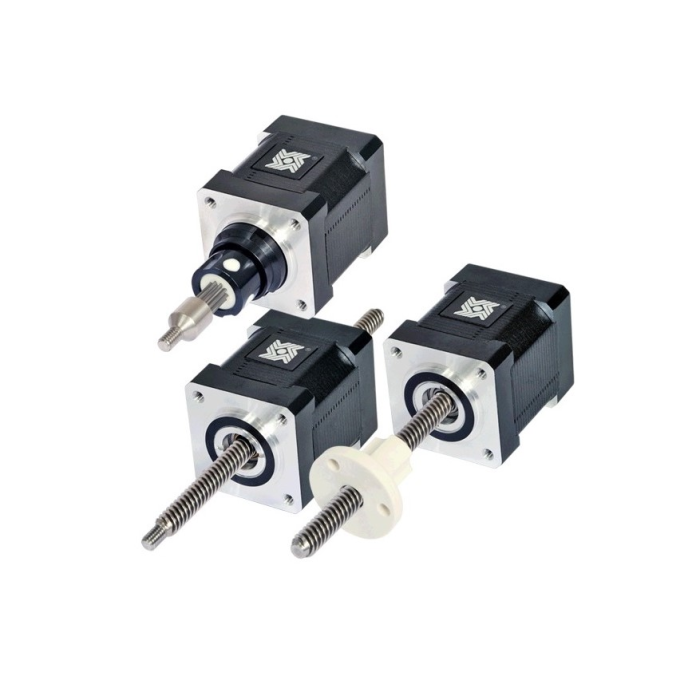

Series 35000 by Haydon Kerk Motion Solutions is a 35 mm stepper motor linear actuator.
• Available in three designs - captive, non-captive and external linear versions
• Stroke (non-captive, external), up to 300 mm
• Stroke (captive), 12.7 - 63.5 mm
• Max. force 30 - 225 N
• Movement / step 15,8 - 127 μm
Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
• Available in three designs - captive, non-captive and external linear versions
• Stroke (non-captive, external), up to 300 mm
• Stroke (captive), 12.7 - 63.5 mm
• Max. force 30 - 225 N
• Movement / step 15,8 - 127 μm
Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
| Size 14, 35 mm (1.4") Double Stack Hybrid Stepper Motor (1.8° step angle) | ||||||
| Product No. | Captive | 35M4(X)-V | ||||
| Non-captive | 35L4(X)-V | |||||
| External lin. | E35M4(X)-V | |||||
| Wiring | Bipolar | |||||
| Winding Voltage | 2.33 VDC | 5 VDC | 12 VDC | |||
| Current/Phase | 2 A | 910 mA | 380 mA | |||
| Resistance/Phase | 1.2 Ω | 5.5 Ω | 31.6 Ω | |||
| Inductance/Phase | 1.95 mH | 7.63 mH | 65.1 mH | |||
| Power Input | 9.1 W | |||||
| Weight | 240 g | |||||
| Length | 44 mm | |||||
| Linear movement/step. Screw Ø 6.35 mm (0.250") | Order Code | |||||
| Inches | mm | |||||
| 0.00375 | 0.00375 | 0.0953 | 0.0953 | AG | ||
| 0.000625 | 0.000625 | 0.0158 | 0.0158 | B | ||
| 0.00125 | 0.00125 | 0.0317 | 0.0317 | C | ||
| 0.0025 | 0.0025 | 0.0635 | 0.0635 | Y | ||
| 0.005 | 0.005 | 0.127 | 0.127 | Z | ||
| Series | Double Stack |
|---|---|
| Product type | Linear stepper motor |
| Brand | Haydon Kerk |
