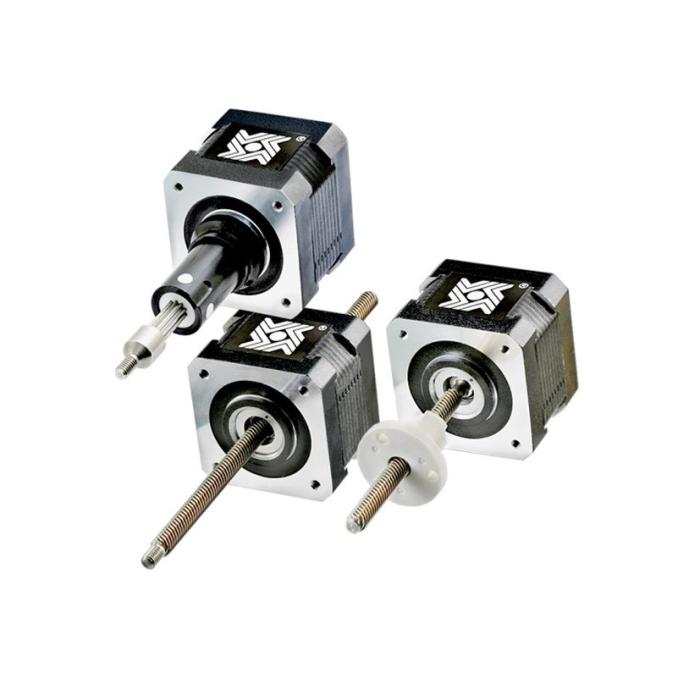

Series 43000 by Haydon Kerk Motion Solutions is a 43 mm stepper motor linear actuator.

• Available in three designs - captive, non-captive and external linear versions.
• Stroke (non-captive, external), up to 400 mm
• Stroke (captive), 12,7 – 63,5 mm
• Max. voima 70 - 220 N
• Liike /askel 1,5 - 50 μm

Hybrid stepper motor linear actuators open new avenues for equipment designers who require high performance and exceptional endurance in a very small package. Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.

The various patent pending designs use a proprietary manufacturing process, which incorporates engineering thermoplastics in the rotor drive nut and a stainless steel acme lead screw. This allows the linear actuator to be much quieter, more efficient and more durable than the v-thread and bronze nut configuration commonly used in other linear actuators.

Size 17, 43 mm (1.7") Hybrid Linear Stepper Motor (1.8° step angle)
Product No.	Captive	43H4(X)-V			43H6(X)-V
	Non-captive	43F4(X)-V			43F6(X)-V
	External lin.	E43H4(X)-V			E43H6(X)-V
Wiring		Bipolar			Unipolar
Winding Voltage		2.33 VDC	5 VDC	12 VDC	5 VDC	12 VDC
Current/Phase		1.5 A	700 mA	290 mA	700 mA	290 mA
Resistance/Phase		1.56 Ω	7.2 Ω	41.5 Ω	7.2 Ω	41.5 Ω
Inductance/Phase		1.9 mH	8.7 mH	54 mH	4.4 mH	27 mH
Power Input		7 W
Weight		241 g
Length		34 mm
Linear movement/step. Screw 5.54 mm (0.218”)		Order Code	Linear movement/step. Screw 6.35 mm (0.250”)		Order Code
Inches	mm	Order Code	Inches	mm	Order Code
0.00048	0.0121	J	0.0003125	0.0079	A
0.00024	0.006	K	0.000625	0.0158	B
0.00012	0.003	N	0.00125	0.0317	C
0.00096	0.0243	Q	0.00015625	0.0039	P
0.00192	0.0487	R

Size 17, 43 mm (1.7") Hybrid Linear Stepper Motor (0.9° step angle)
Product No.	Captive	43K4(X)-V			43K6(X)-V
	Non-captive	43J4(X)-V			43J6(X)-V
	External lin.	E43K4(X)-V			E43K6(X)-V
Wiring		Bipolar			Unipolar
Winding Voltage		2.33 VDC	5 VDC	12 VDC	5 VDC	12 VDC
Current/Phase		1.5 A	700 mA	290 mA	700 mA	290 mA
Resistance/Phase		1.56 Ω	7.2 Ω	41.5 Ω	7.2 Ω	41.5 Ω
Inductance/Phase		2.6 mH	12 mH	70 mH	6 mH	35 mH
Power Input		7 W
Weight		241 g
Length		34 mm
Linear movement/step. Screw 5.54 mm (0.218”)		Order Code	Linear movement/step. Screw 6.35 mm (0.250”)		Order Code
Inches	mm	Order Code	Inches	mm	Order Code
0.00048	0.0121	J	0.0003125	0.0079	A
0.00024	0.006	K	0.000625	0.0158	B
0.00012	0.003	N	0.00015625	0.0039	P
0.00096	0.0243	Q	0.000078	0.002	V
0.00006	0.0015	U
